AP Liberty® Fiber Distribution Hub
NEMA 3R & 4X FDH Enclosure for FTTH Deployment
The AP LIBERTY® is a rugged, cost-effective fiber distribution hub designed for outdoor fiber-to-the-home (FTTH) deployment in rural and residential broadband applications. Rated NEMA Type 3R and 4X, this fiber distribution hub (FDH) enclosure delivers the weatherproof protection, field flexibility, and factory-ready configuration options that network builders need — without compromising on quality or scalability.

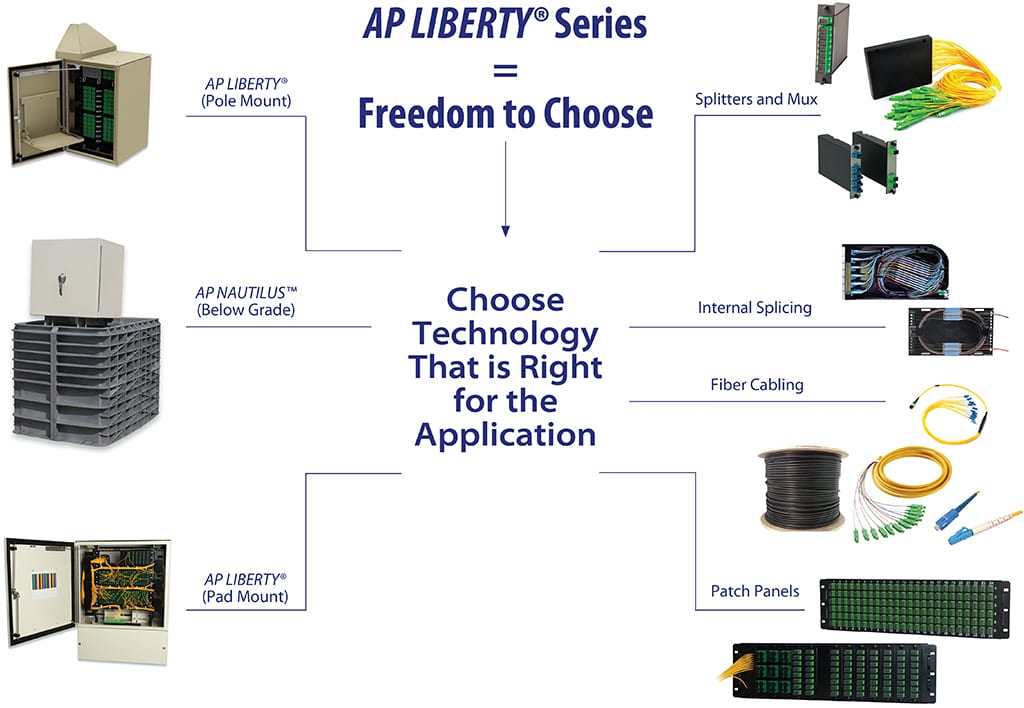

Available in multiple sizes, this fiber optic distribution cabinet scales to serve 144/288, 432, or 576 homes from a single enclosure, with a larger 864-port model available for higher-density PON network deployments.
Common Uses
- Fiber optics
- Networking
Purpose-Built for FTTH and PON Networks
The AP LIBERTY® fiber cabinet is engineered specifically to serve as the transition point between the passive optical network (PON) and the subscriber drop. Its logistics-style patch panels allow technicians to rapidly provision and reconfigure services in the field without relying on proprietary components — everything is compatible with industry-standard parts, keeping your supply chain simple and your deployment timelines on track.
For projects that benefit from advance preparation, the AP LIBERTY® FDH enclosure can be factory pre-configured and tested before it ever reaches the job site. Pre-configuration options include 50′ or 100′ pre-connectorized SC/APC pigtails, patch panels with adapters, LGX-style optical splitters, and splice trays. This factory integration option reduces installation time in the field and minimizes the risk of errors during deployment — a meaningful advantage for large-scale FTTH rollouts.
Standard Features of the AP Liberty® Fiber Distribution Hub
Every AP LIBERTY® fiber cabinet ships standard with the following features, built to telecom-grade specifications for outdoor fiber optic distribution.
- NEMA Type 3R & 4X protection – Protects equipment from falling dirt, dust, rain, sleet, snow, external ice formation, splashing water & hose-directed water
- Telcordia – Designed and built to Telcordia GR-487 specifications for outdoor telecom enclosures
- ETL Certified (4X models) – Tested to UL 50, UL 50E & CSA C22.2 No. 94.1-2 standards
- .125 aircraft-grade aluminum – Provides excellent corrosion resistance
- 304 stainless steel hardware – Provides extreme rust/corrosion protection in the field
- Solar shield roof (4X models) – Double-layer construction reduces radiant heat & internal cooling requirements
- Powdercoating – Standard Beige, Gray & White powdercoating provides more protection against corrosion – Durability proven via 720-hour salt spray test – Also available in custom colors
- 12-position ground terminal strip – Helps protect electronics in case of electrical shock
- Adjustable, numbered equipment racks – Available in 19” or 23” for easy shelf installation
- Lifting eyes – Simplifies unloading and pad or pole mount installation of the fiber cabinet
- 5-year warranty – Covers American Products components on all AP LIBERTY® FDH enclosures
Engineered for Outdoor Durability
Built from .125″ aircraft-grade 5052-H32 aluminum, the AP LIBERTY® fiber optic distribution cabinet resists corrosion and holds up in demanding outdoor environments. Every exterior fastener, hinge, and latch is Type 304 stainless steel — chosen because it will not rust in the field. Enclosures are powder coated in standard beige, gray, or white (custom colors available) and tested to a 720-hour salt spray standard per Telcordia GR-487 specifications.
A double-layer solar shield roof on 4X models reduces radiant heat buildup and lowers internal cooling requirements, protecting fiber optic components through seasonal temperature extremes.
NEMA 3R & 4X Protection, ETL Certified
This FDH enclosure meets NEMA Type 3R and 4X protection standards, defending against rain, sleet, snow, ice formation, splashing water, and hose-directed water. Four-X models are ETL certified and tested to UL 50, UL 50E, and CSA C22.2 No. 94.1-2 standards. Door gaskets are UL 94-rated EPDM material with a temperature rating of -40°F to +212°F. Three-point, quarter-turn padlockable stainless steel door latches provide secure, tool-resistant closure, and a 12-position aluminum ground terminal strip protects electronics against electrical faults.
Flexible Installation — Pole Mount or Pad Mount

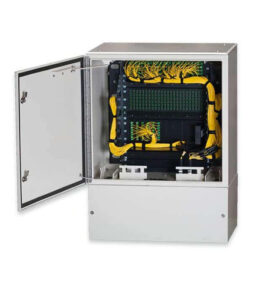

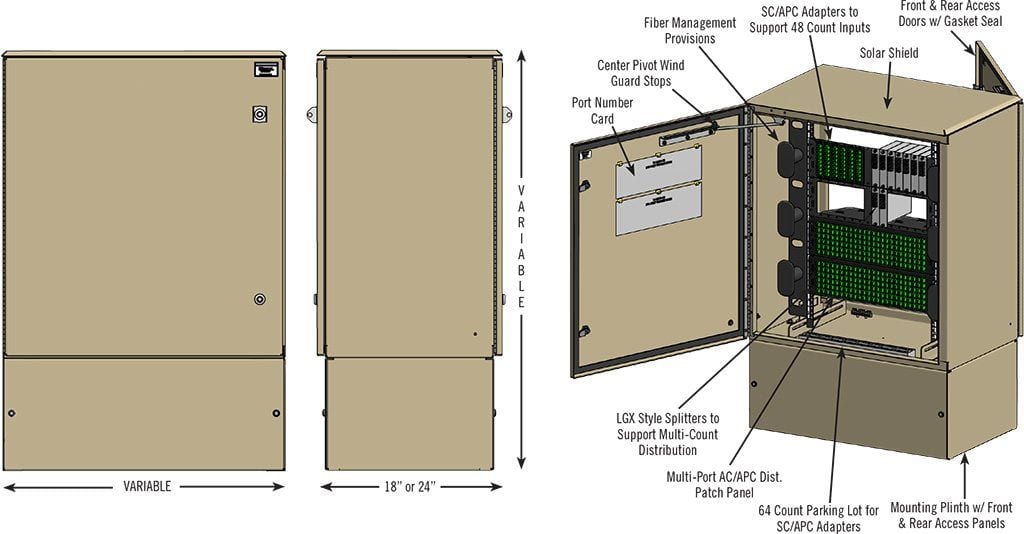

The AP LIBERTY® fiber cabinet supports both pole mounting and pad mounting, giving installers flexibility across a wide range of deployment environments. A user-friendly bracket kit converts between configurations, and an optional 12″ mounting plinth with front and rear access panels provides cable slack storage for pad mount installations. Built-in lifting eyes allow safe hoisting during installation.
Inside, adjustable 19″ or 23″ numbered equipment racks — built to EIA standards and reversible between configurations — provide organized, scalable fiber management. Up to six sealing cable entry glands accommodate cables from 3/4″ to 1″ in diameter, with IP67-rated liquid-tight EPDM bushings for weatherproof cable entry.
The “Hot Slide” removable rack system is standard on all AP LIBERTY® models. It allows technicians to remove the rack and cables from the fiber cabinet without interrupting active service — reducing downtime during field maintenance or reconfiguration.
Five-Year Warranty
Every AP LIBERTY® FDH enclosure is backed by a five-year warranty (U.S. and Canada) against defects in materials and workmanship. American Products manages freight for all domestic warranty claims, so you’re not left handling return logistics on your own.
If a below-grade installation is a better fit for your project, explore the AP BUNKER, our below-grade fiber enclosure solution.
Ready to configure your fiber distribution hub? Contact an American Products enclosure specialist at 417-736-2135 or toll free at 855-736-2135.
Frequently Asked Questions
What is a fiber distribution hub (FDH)?
What is the difference between NEMA 3R and NEMA 4X?
Can the AP LIBERTY® be factory pre-configured?
How many homes can one AP LIBERTY® fiber cabinet serve?
Does the AP LIBERTY® use proprietary components?
Can the AP LIBERTY® fiber cabinet be pole mounted or pad mounted?
What warranty comes with the AP LIBERTY®?
Who do I contact for technical support or to place an order?
American Products technical support and sales are available Monday through Friday, 9 a.m. to 4 p.m. Central time. Call toll-free at 855-736-2135, direct at 417-736-2135, or send us a message online.
