Freedom Single Bay
U.S. Built Enclosures with Precision Integration
NEMA Type 4X Outdoor Telecom Enclosure

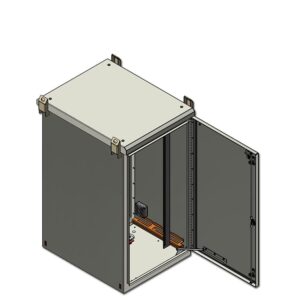

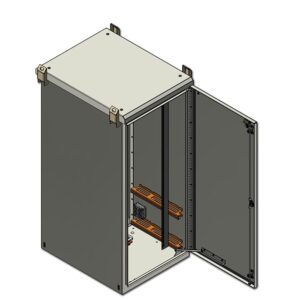

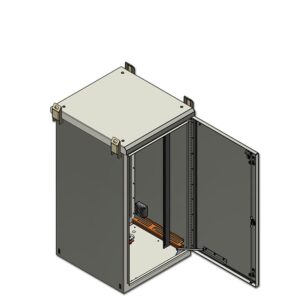

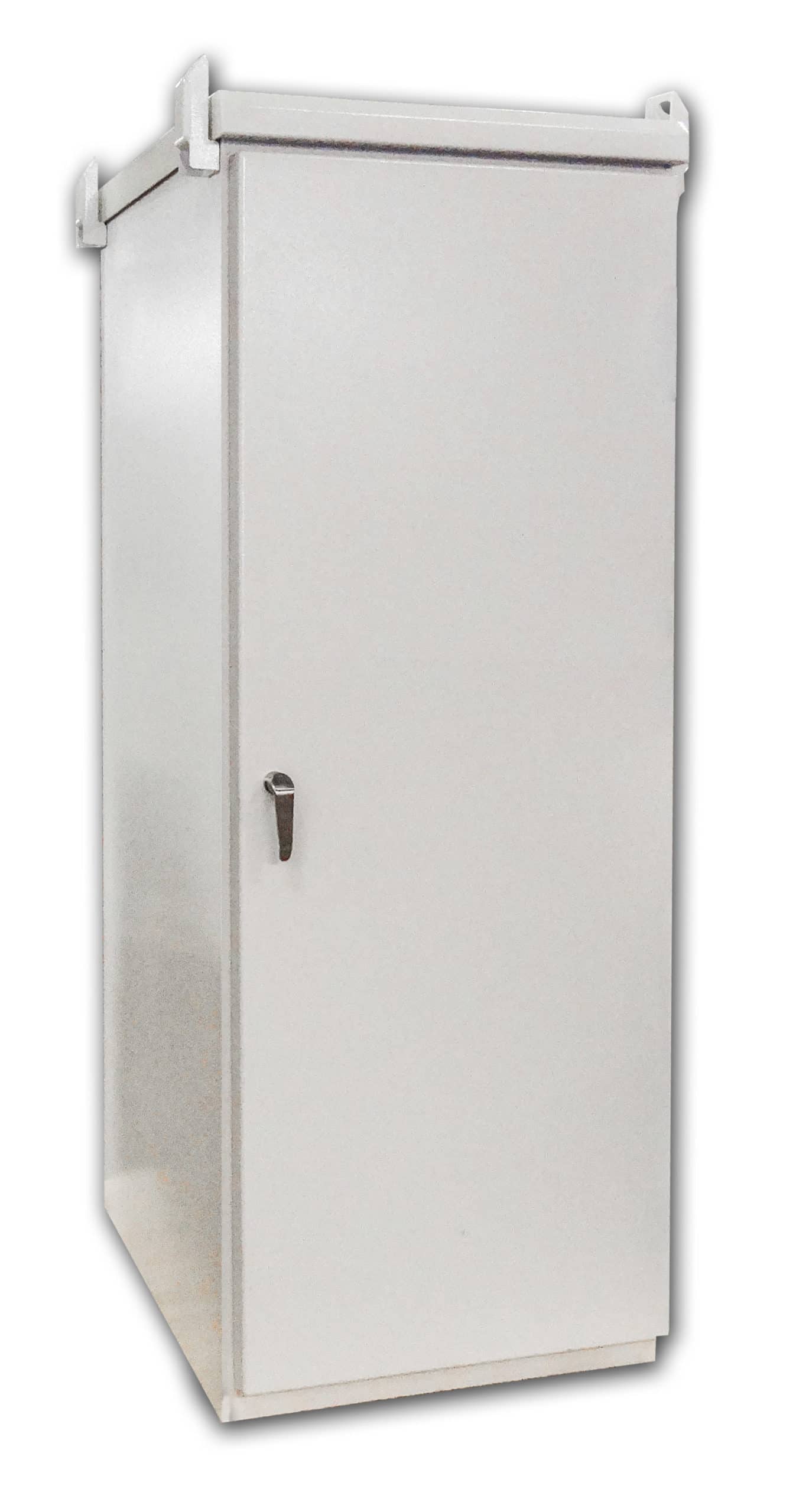

A Compact, High-Protection, Single-Bay Enclosure

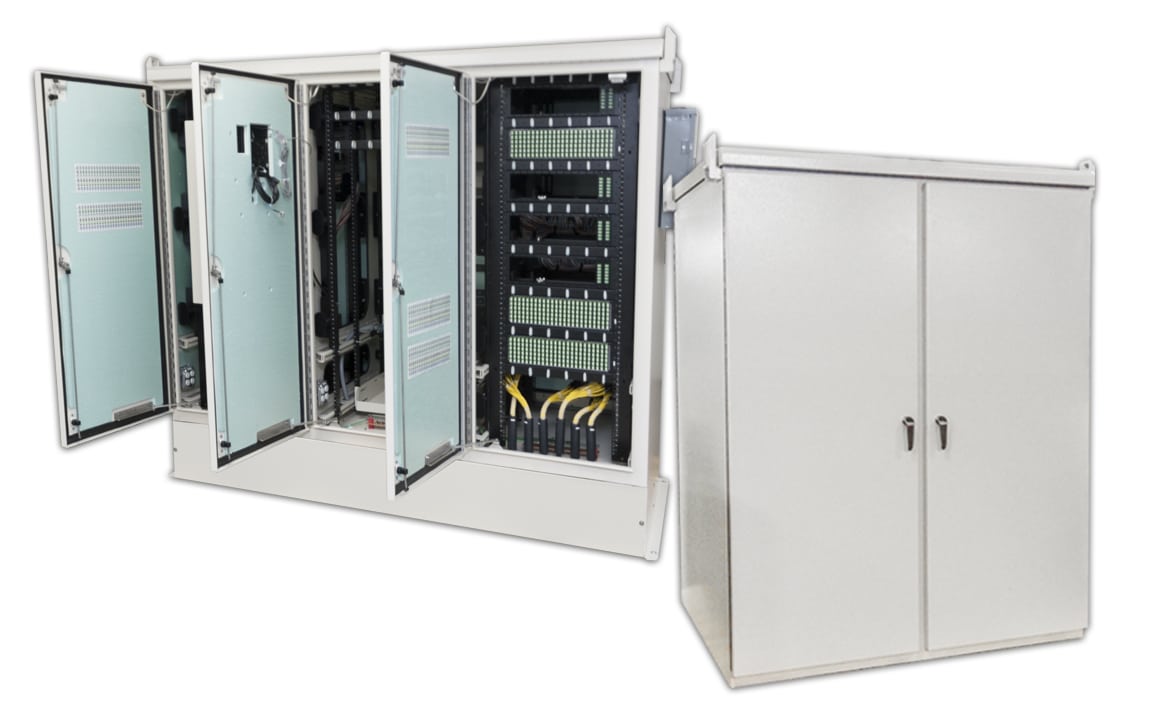

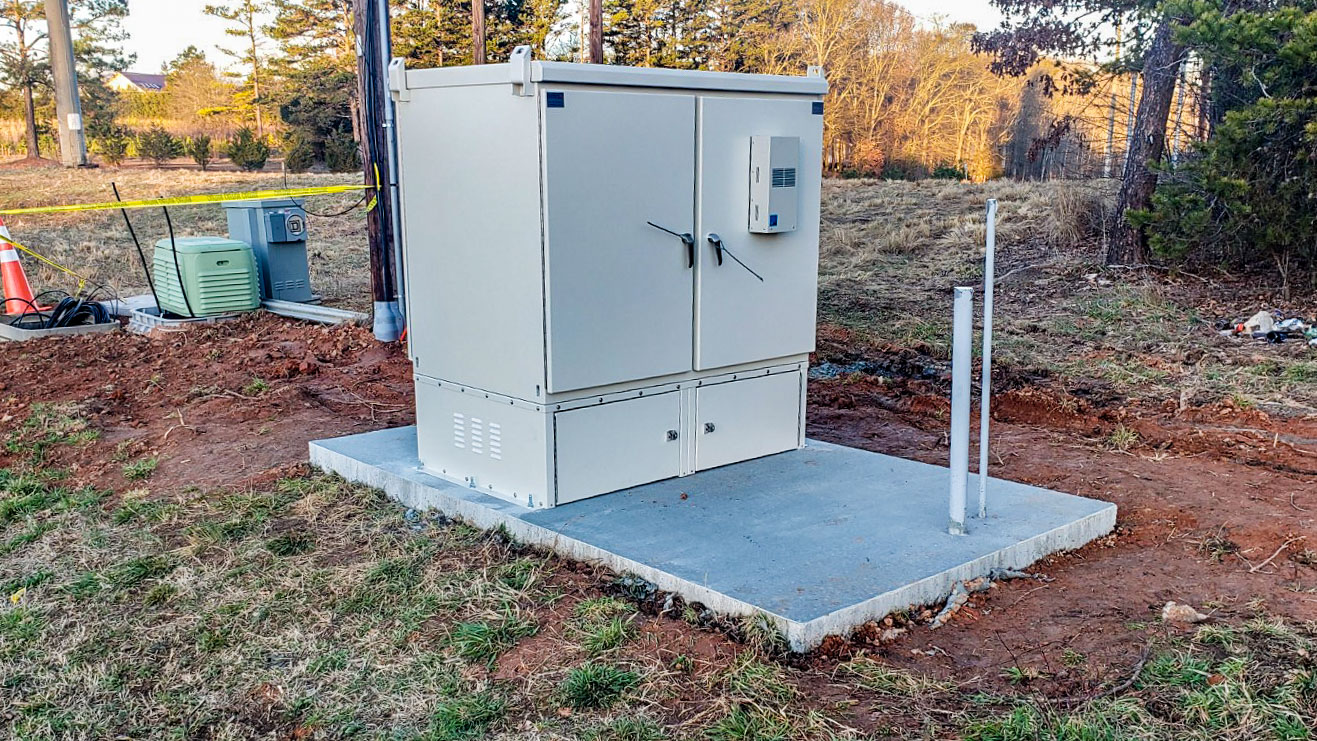

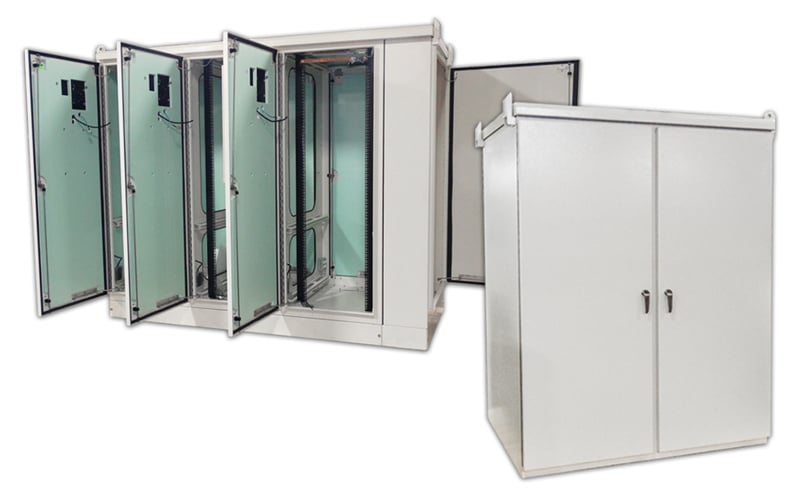

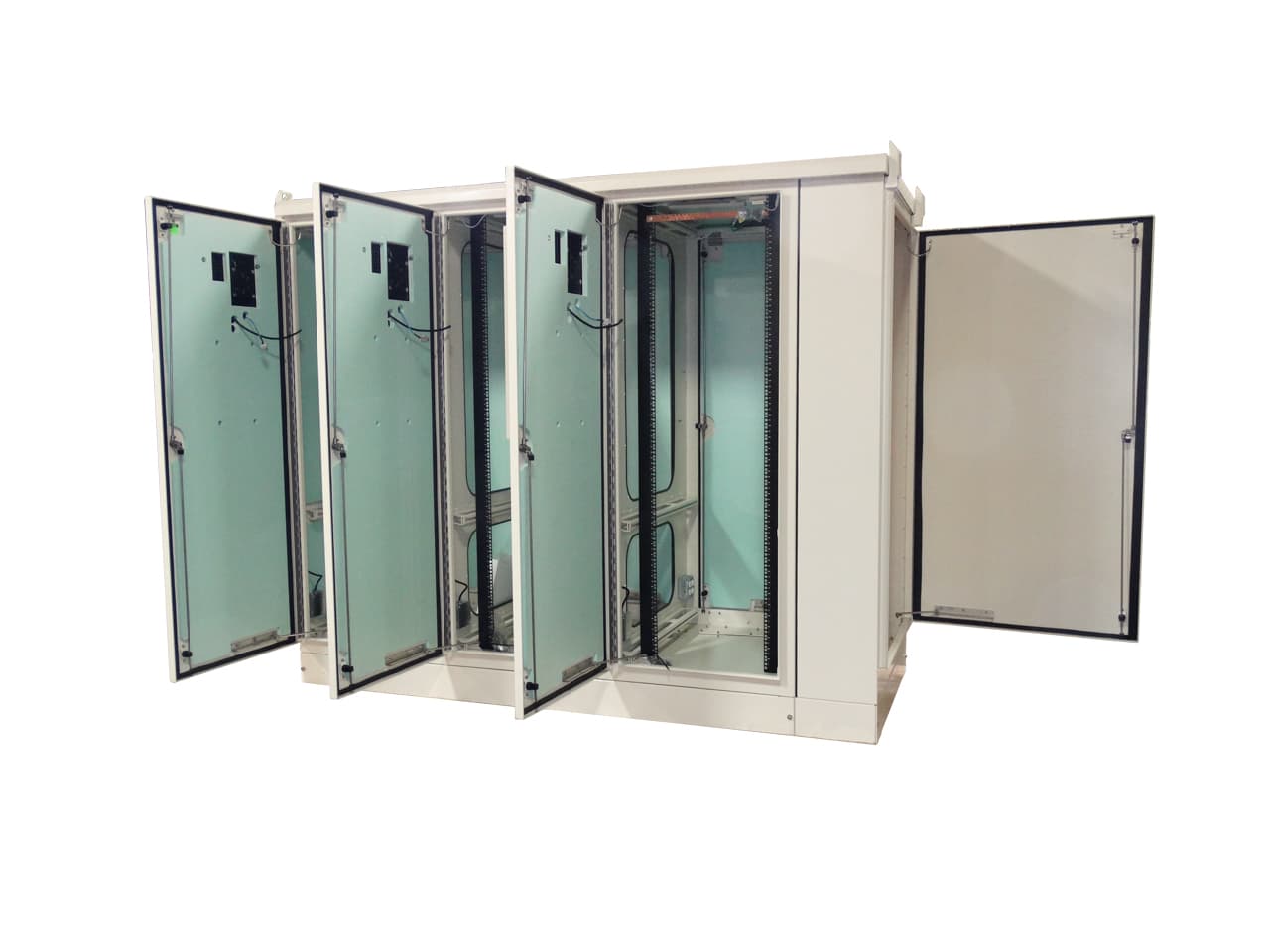

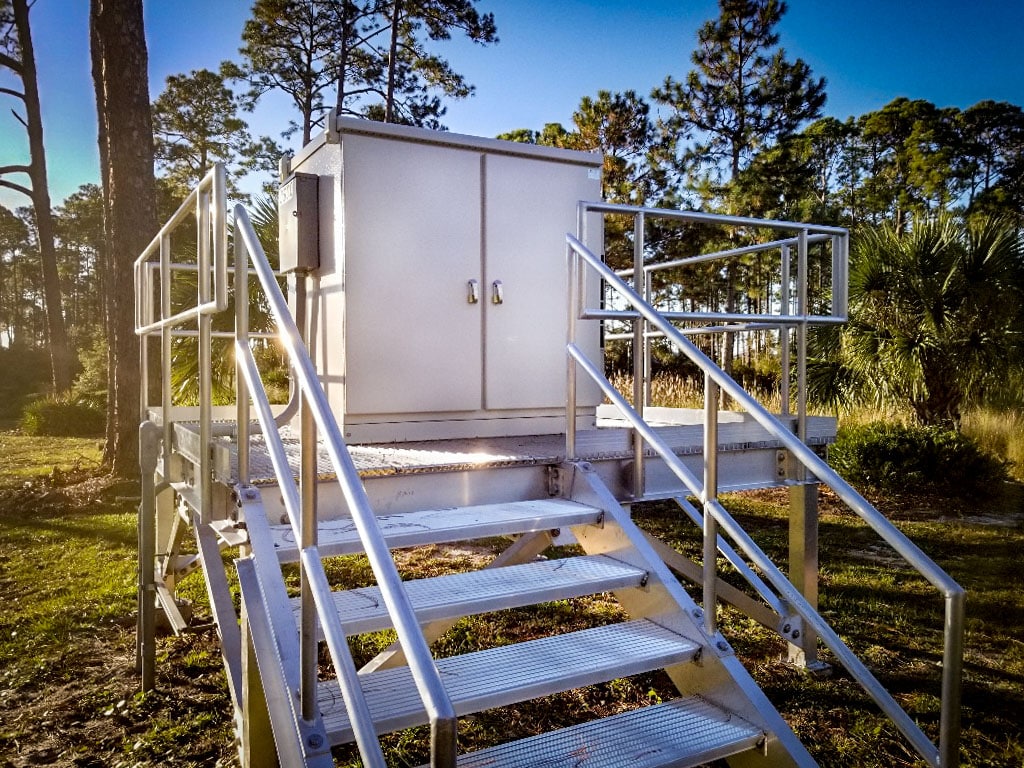

The AP Freedom® is a NEMA Type 4X outdoor telecom enclosure engineered to shield sensitive electronics in demanding field conditions. Built to NEMA Type 4X standards, this single-bay enclosure protects equipment from rain, sleet, snow, splashing water, hose-directed water, and damage caused by external ice formation — a dependable choice for lower-capacity sites that still demand serious environmental protection. Typical deployments include outdoor telecom equipment, edge data center nodes, and renewable energy controls. Need more capacity? The AP Freedom is also available in double and triple-bay configurations in a range of sizes to match your project’s requirements.

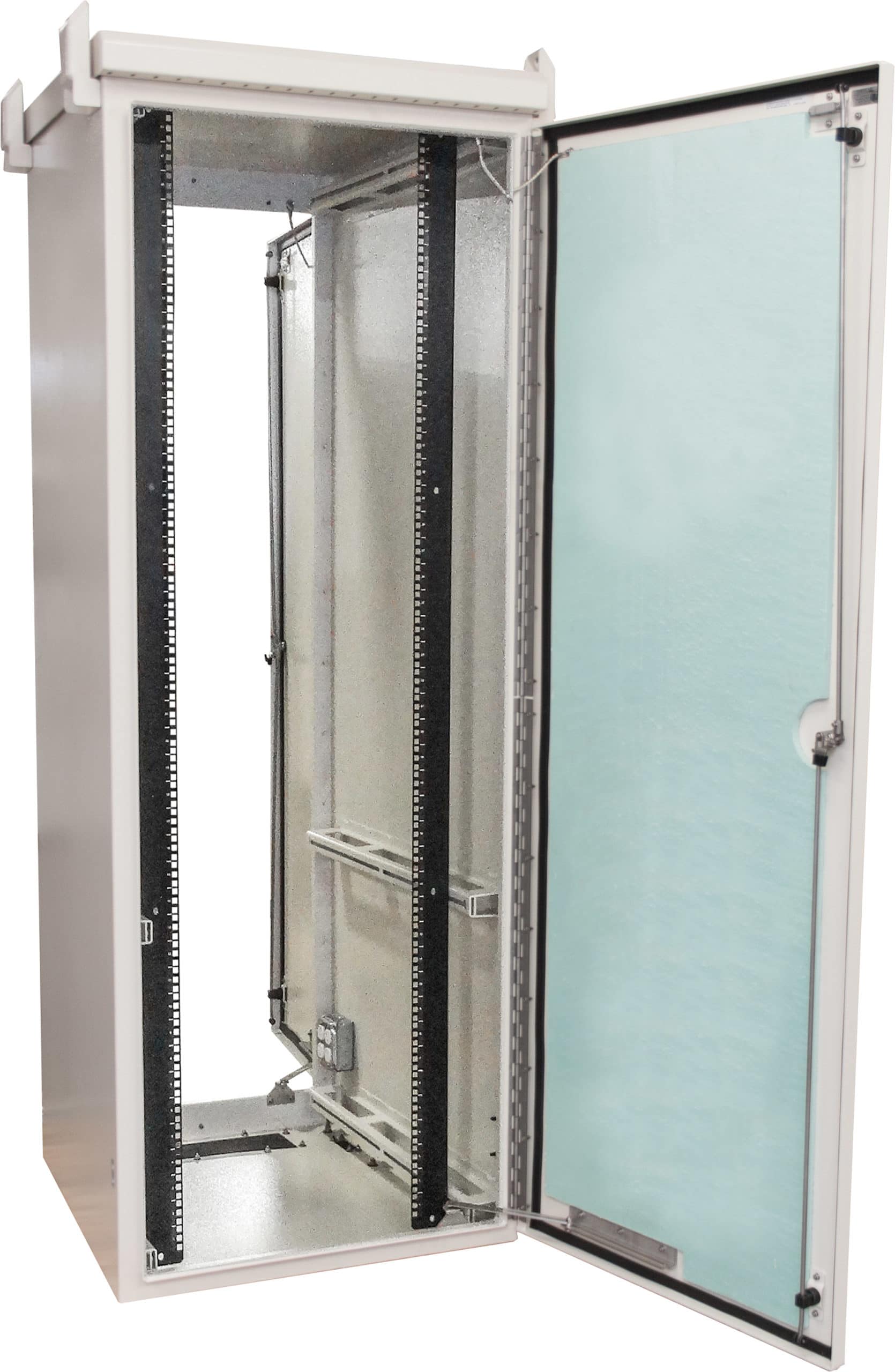

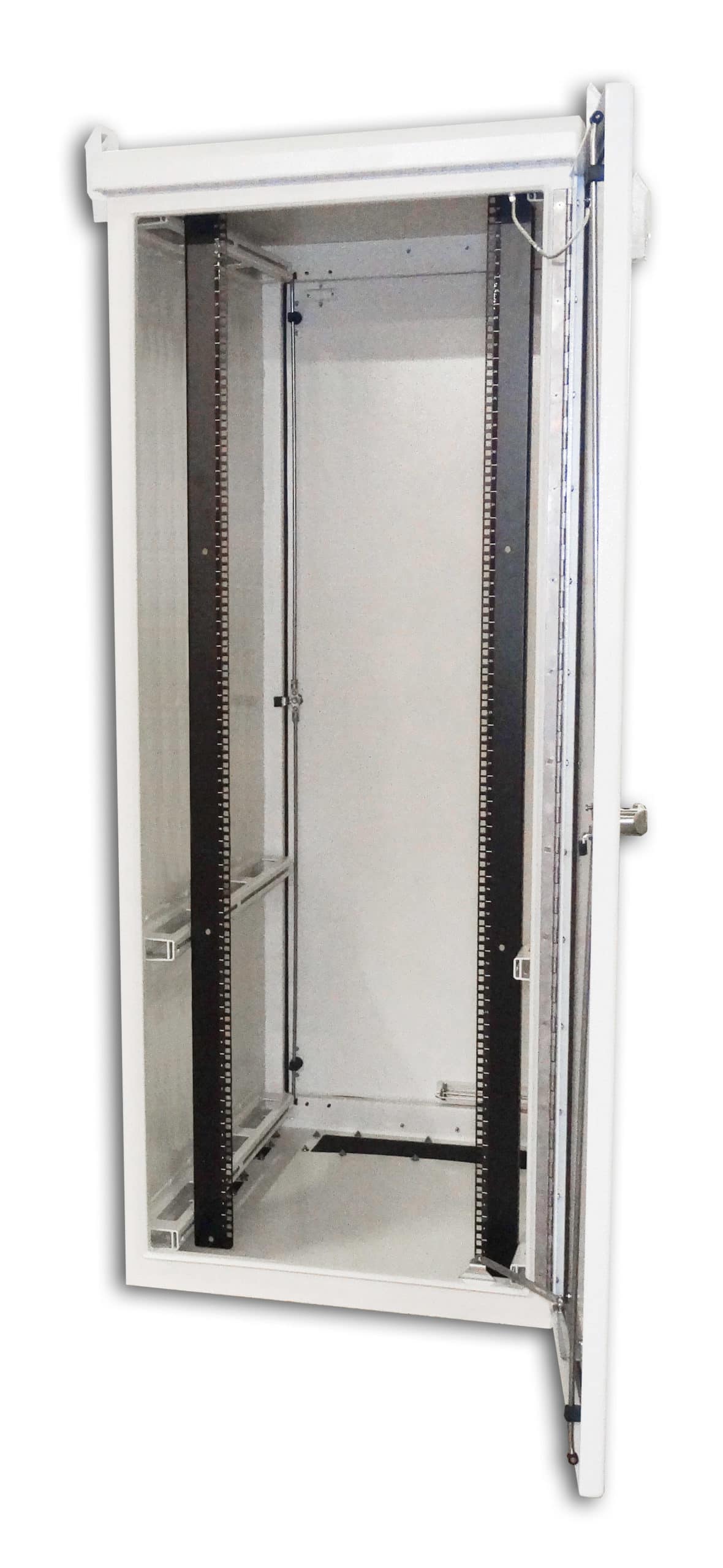

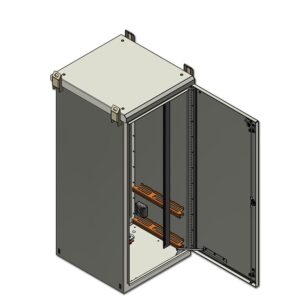

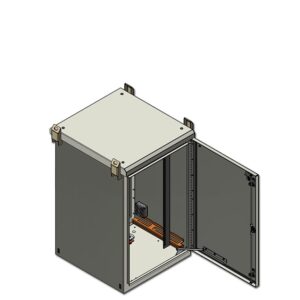

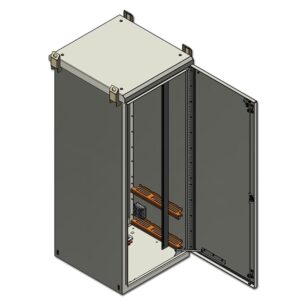

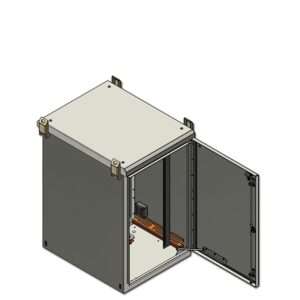

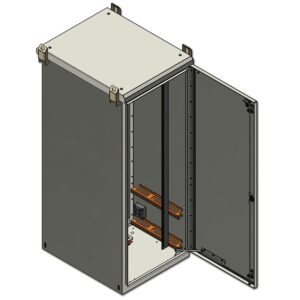

Inside, the cabinet provides standard rack units (RU) for shelving, a grounding terminal that guards against electrical surges, a solar shield roof that reduces cooling demand, and pre-wired powered receptacles. Like every American Products cabinet, the Freedom is engineered to last for years thanks to solid construction, top-quality materials, and durable powder coating. Start designing yours by calling our enclosure specialists at 417-736-2135.
Common Uses
- Electronic Industries Alliance (EIA) rack-mount equipment
- Fiber optics
- Satellite communications
- Telecommunications
- Traffic control systems
- Industrials systems
- Networking
- Data Centers
- Wireless backhaul
- Cable TV
- Navigation & positioning (marine & land)
- Military installations
- WiMAX communications
- Power/equipment storage
- Renewable Energy
- Minicell, microcell & femtocell
- Cellular service (5G)
Browse our full lineup of outdoor cabinets and enclosures or explore the industries we serve to find the right fit.
Standard Features
Every AP Freedom single-bay enclosure ships with a robust set of standard features designed for outdoor durability and easy field installation:
- NEMA Type 4X protection – Guards equipment against falling dirt, dust, rain, sleet, snow, external ice formation, splashing water, and hose-directed water
- Telcordia – Designed and built to Telcordia specifications for telecom
- ETL Certified – Tested to UL 50 & UL 50E standards
- .125 aircraft-grade aluminum – Delivers excellent corrosion resistance
- 304 stainless steel hardware – Provides extreme rust and corrosion protection in the field
- Solar shield roof – Double-layer construction reduces radiant heat and internal cooling requirements
- Powder coating – Standard Beige, Gray, and White finishes add corrosion protection, proven via a 720-hour salt spray test, with custom colors also available
- Power – Pre-wired with 20-amp receptacles
- 10-position ground terminal strip – Helps protect electronics in case of electrical shock
- Door locks – Secures equipment against vandals
- Adjustable, numbered equipment racks – Available in 19" or 23" for easy shelf installation
- Lifting eyes – Crane-ready for simple offloading and pad installation
- 5-year warranty – Covers American Products components
Built and Integrated in the U.S.A.
The AP Freedom is designed and manufactured at our facility in Strafford, Missouri, using U.S.-sourced components wherever possible — so every enclosure helps you meet Build America, Buy America (BABA) requirements. Welded aluminum construction, 304 stainless steel hardware, and outdoor-rated TGIC powder coating give the cabinet long-term resistance to corrosion and the elements. Because we integrate racks, power, and accessories in-house before the enclosure ever leaves the factory, you receive a turnkey, ready-to-deploy solution that keeps your project on schedule.
Climate Control Options
Because outdoor equipment generates heat and faces temperature extremes, the AP Freedom can be configured with factory-installed climate control. Depending on enclosure size and configuration, options include air conditioning units (1,000 to 12,000 BTU/hr) with built-in and cold-start heaters, 48 VDC powered exhaust fans with adjustable thermostats and filters, heat exchangers, baseboard heaters (100W–1000W, 115VAC), and battery heater pads. Insulation is recommended whenever a climate control option is added.
Our team sizes and integrates these systems in-house, so your enclosure arrives ready to hold safe operating temperatures in the field. Availability varies by model. Contact our specialists to confirm the right climate control for your single-bay configuration.
Configurable Add-Ons
Beyond climate control, the AP Freedom supports a range of factory-integrated accessories, so you receive a turnkey enclosure tailored to your site:
- LED interior lighting
- Door alarm
- Load center
- Additional rack rail sets (19" or 23")
- Battery compartment, battery tray, and L rail set
- 4" or 6" mounting plinth
- Laptop tray
- Generator plug and interlock
Not every option fits every single-bay size, so explore our parts and accessories or talk to us about custom solutions to confirm what works for your configuration.
