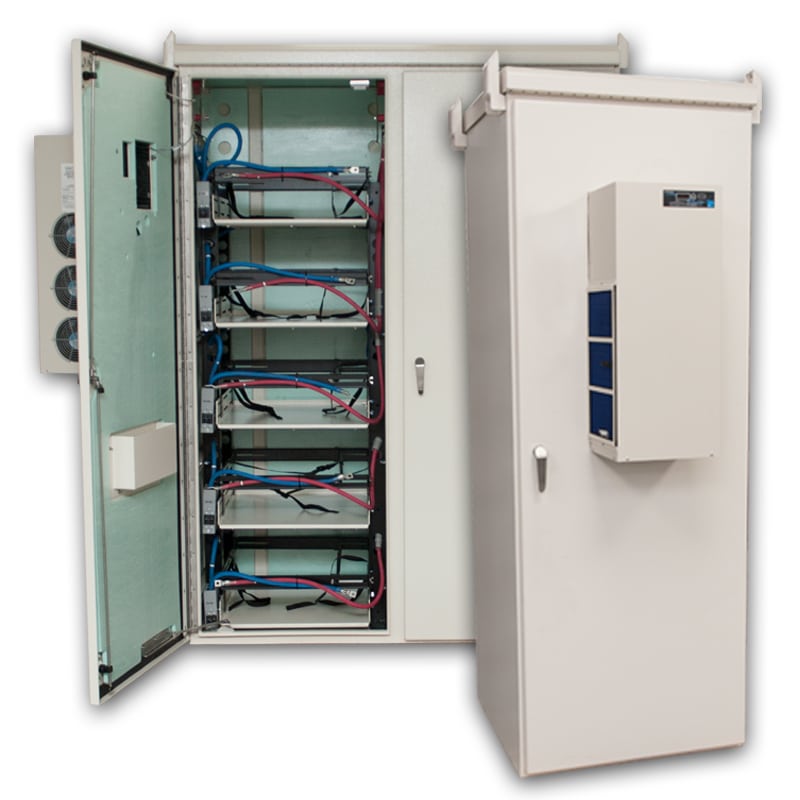

AP BATTERY™ Telecom Battery Storage Cabinet (Type 3 & Type 4)

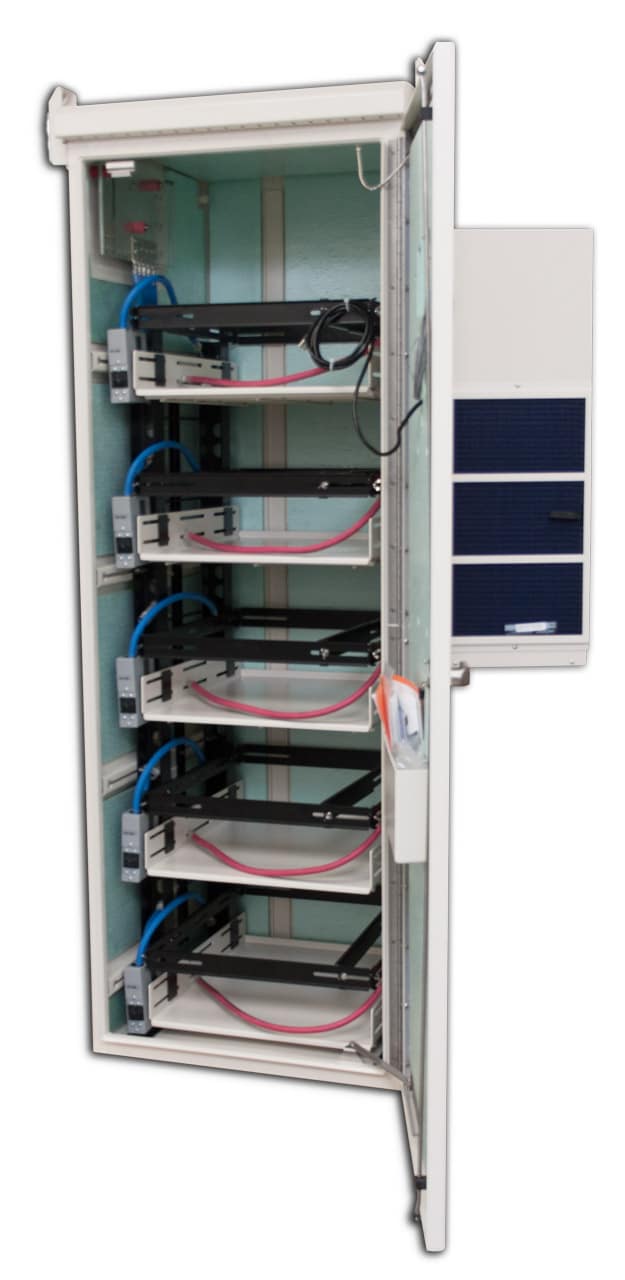

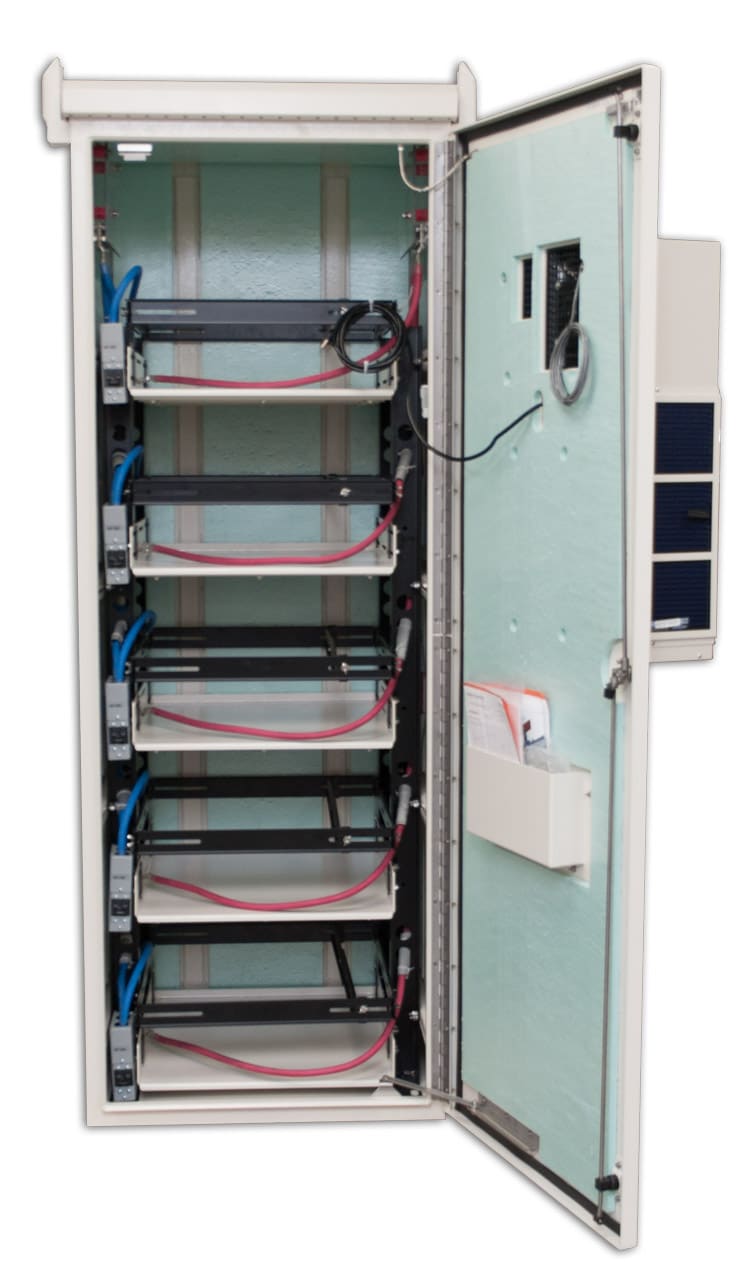

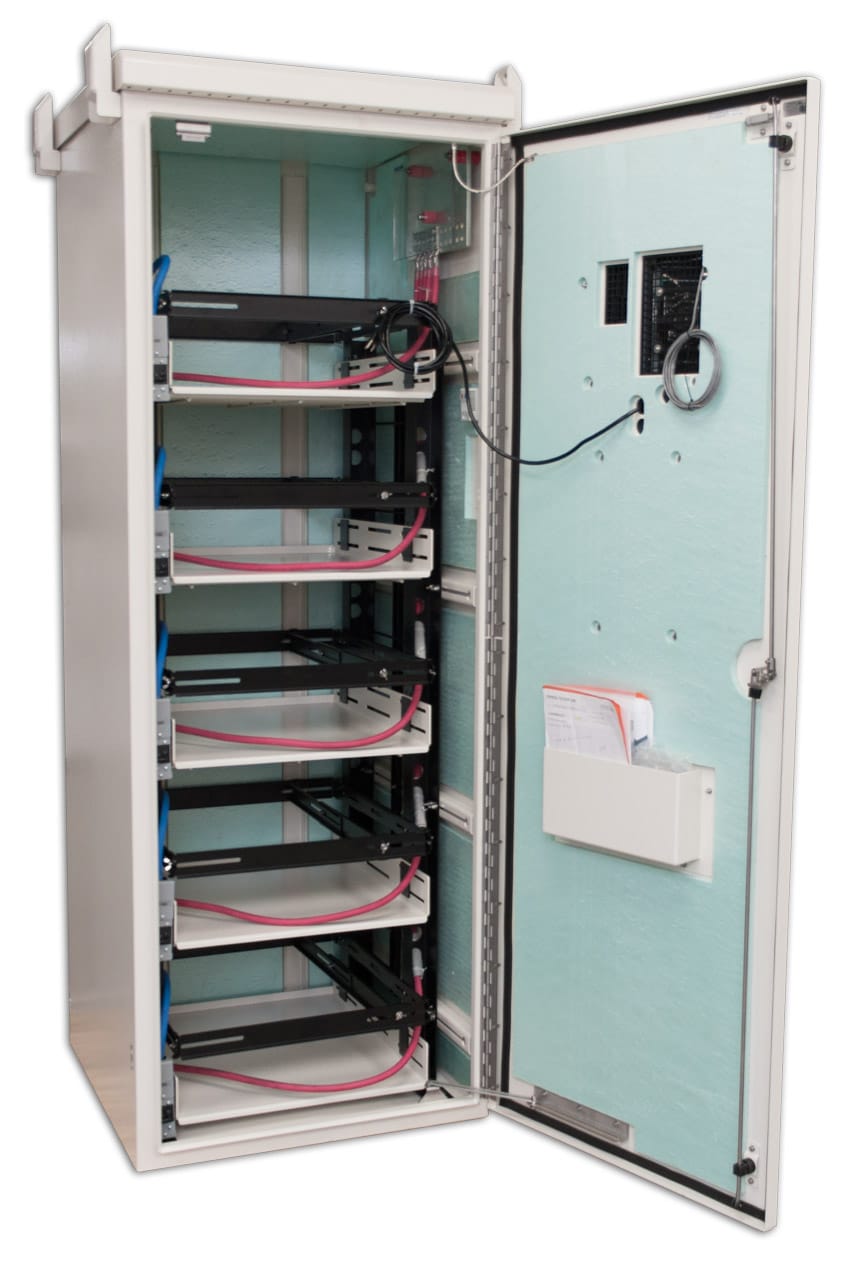

The AP BATTERY™ cabinet provides secure, climate-managed outdoor storage for telecom and standby battery strings. Built from .125 aircraft-grade aluminum with NEMA Type 3R and 4X options, it protects battery banks at remote telecom, renewable energy, and backup-power sites — keeping them within optimal operating temperatures year-round.
Standard Offerings
- .125 Aircraft Grade Aluminum. Outstanding corrosion resistance.
- NEMA Protection: Type 4X (HVAC), Type 3R (FAN). This enclosure protects against rain, sleet, snow, splashing water and damage from external ice formation.
- Stainless Steel Hardware: We choose the highest quality materials to produce our enclosures. Type 304 stainless steel hardware will not rust in the field.
- Powder Coat: Enclosures are powder coated and tested for outdoor telecom enclosures. Beige, Gray & White are standard. Custom colors are available.

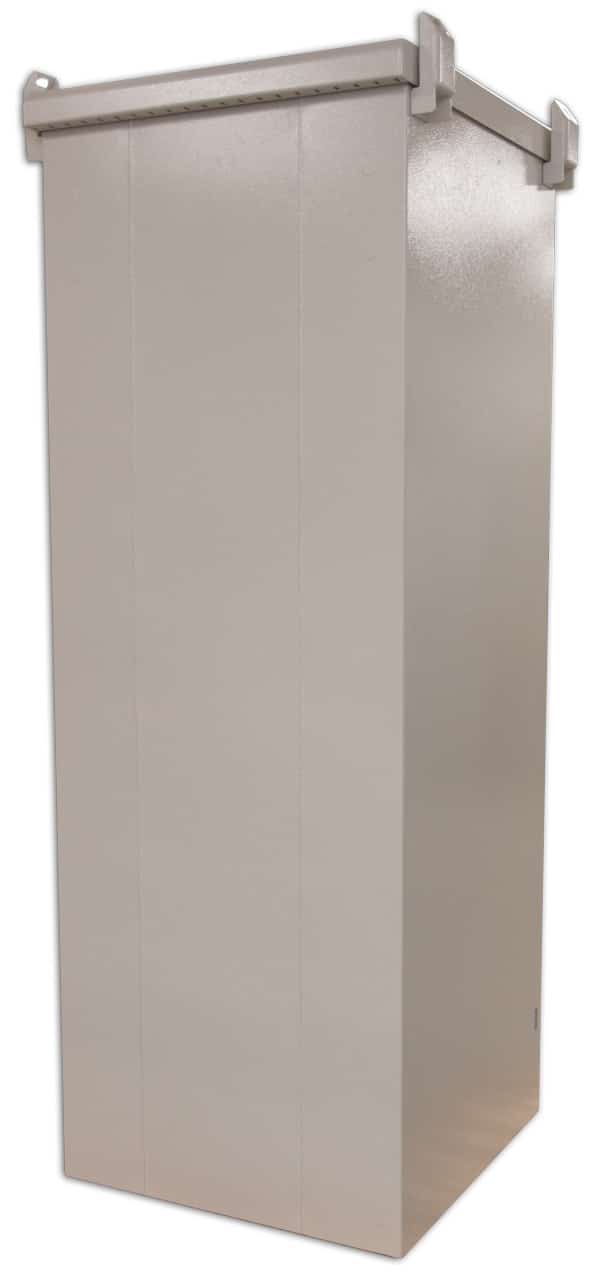

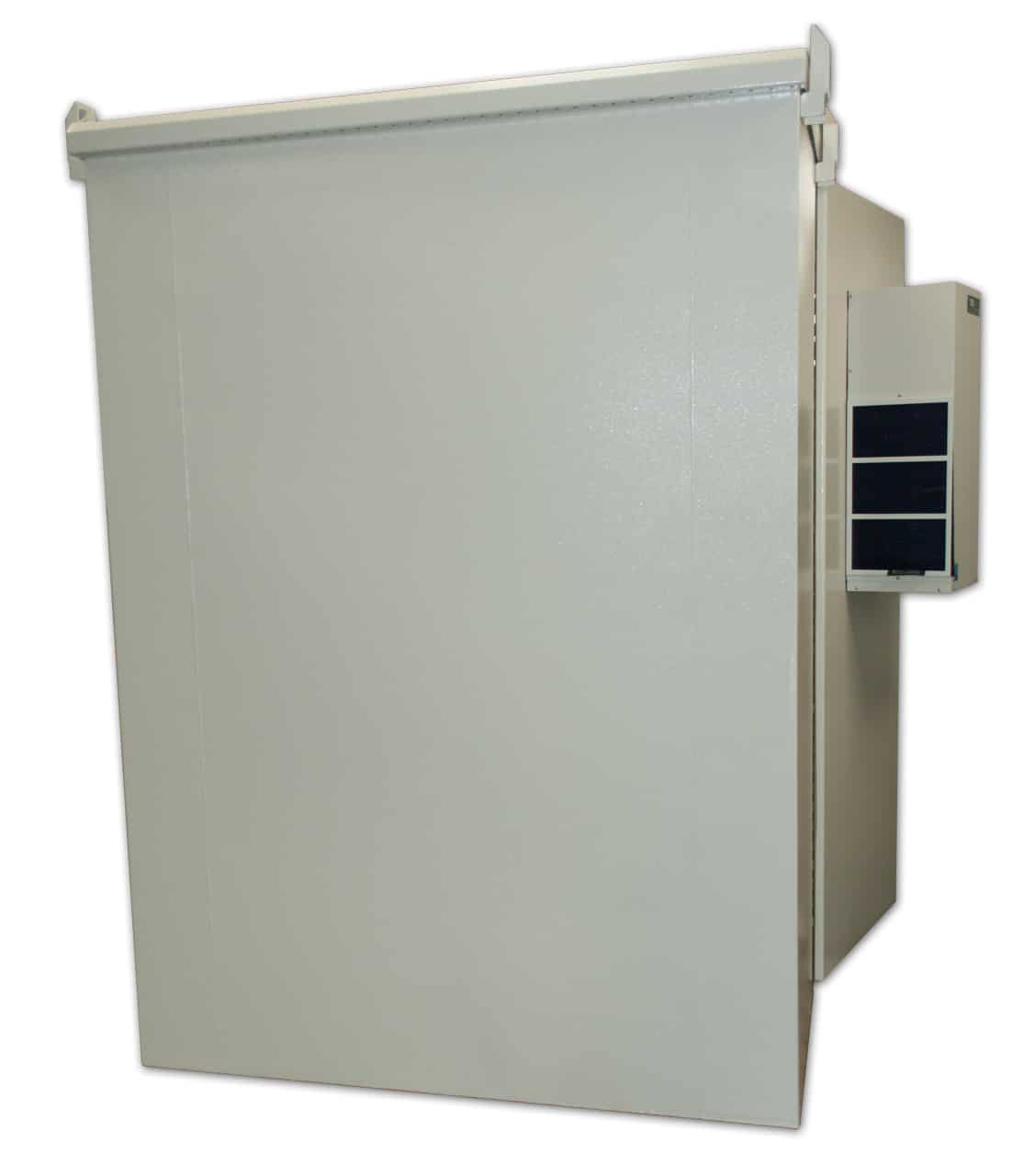

- Solar Shield Roof: Includes a double wall roof to reduce the radiant heat and internal cooling requirements of the enclosure.

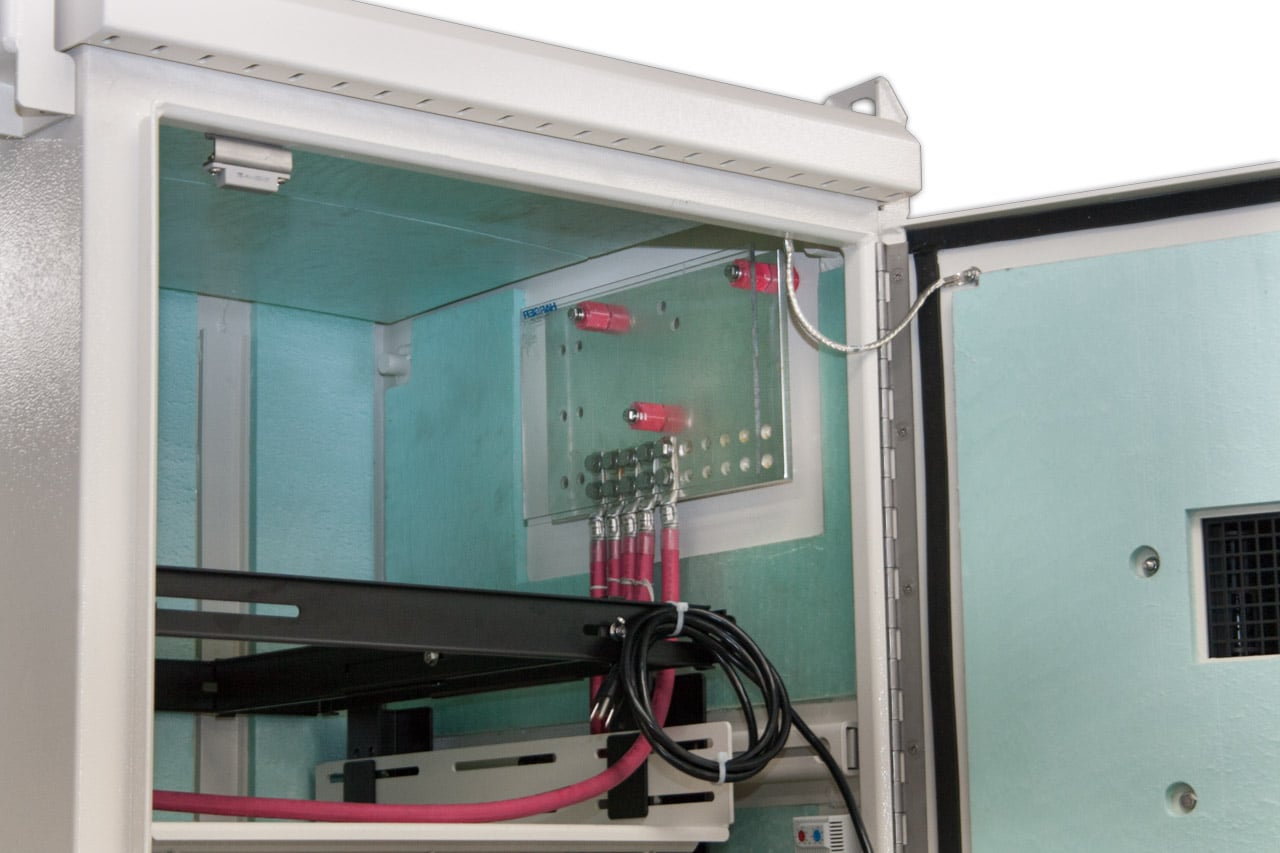

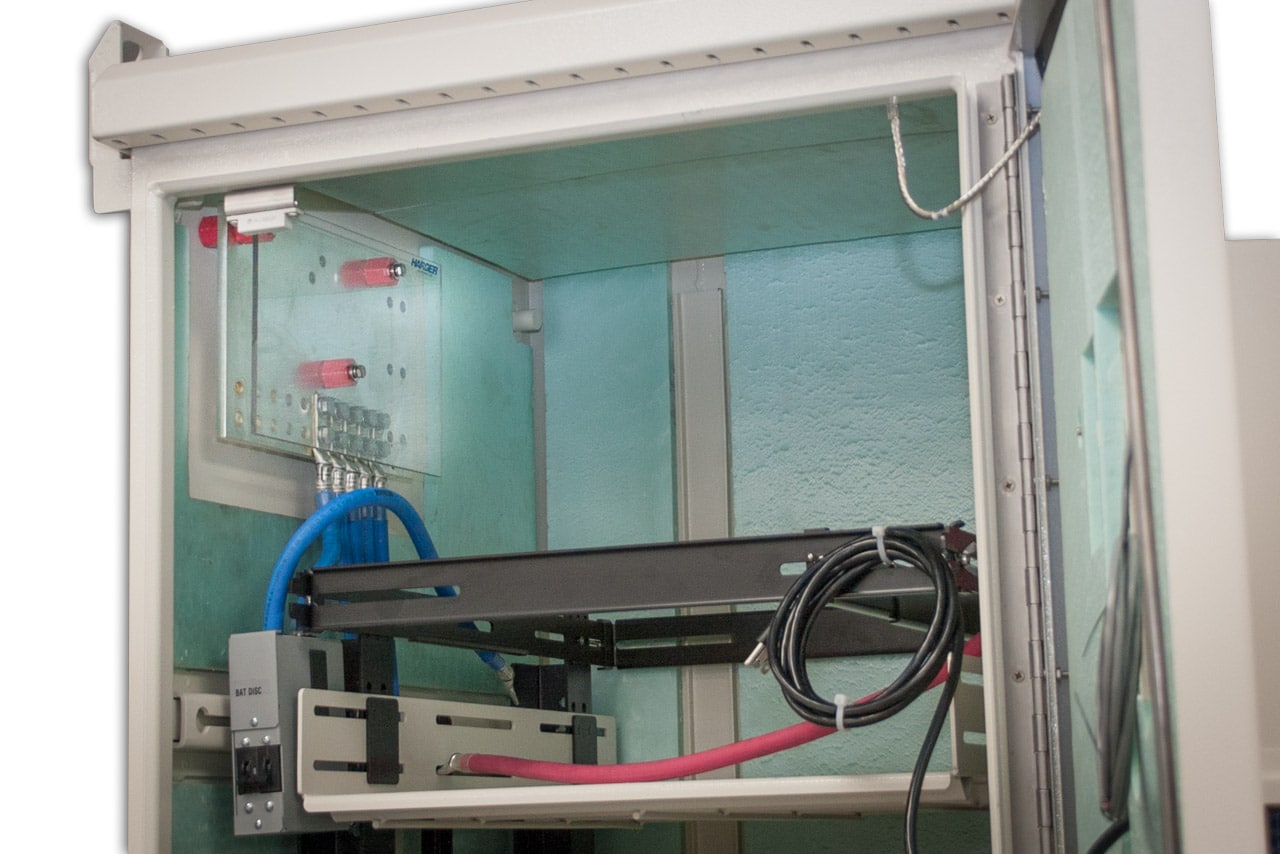

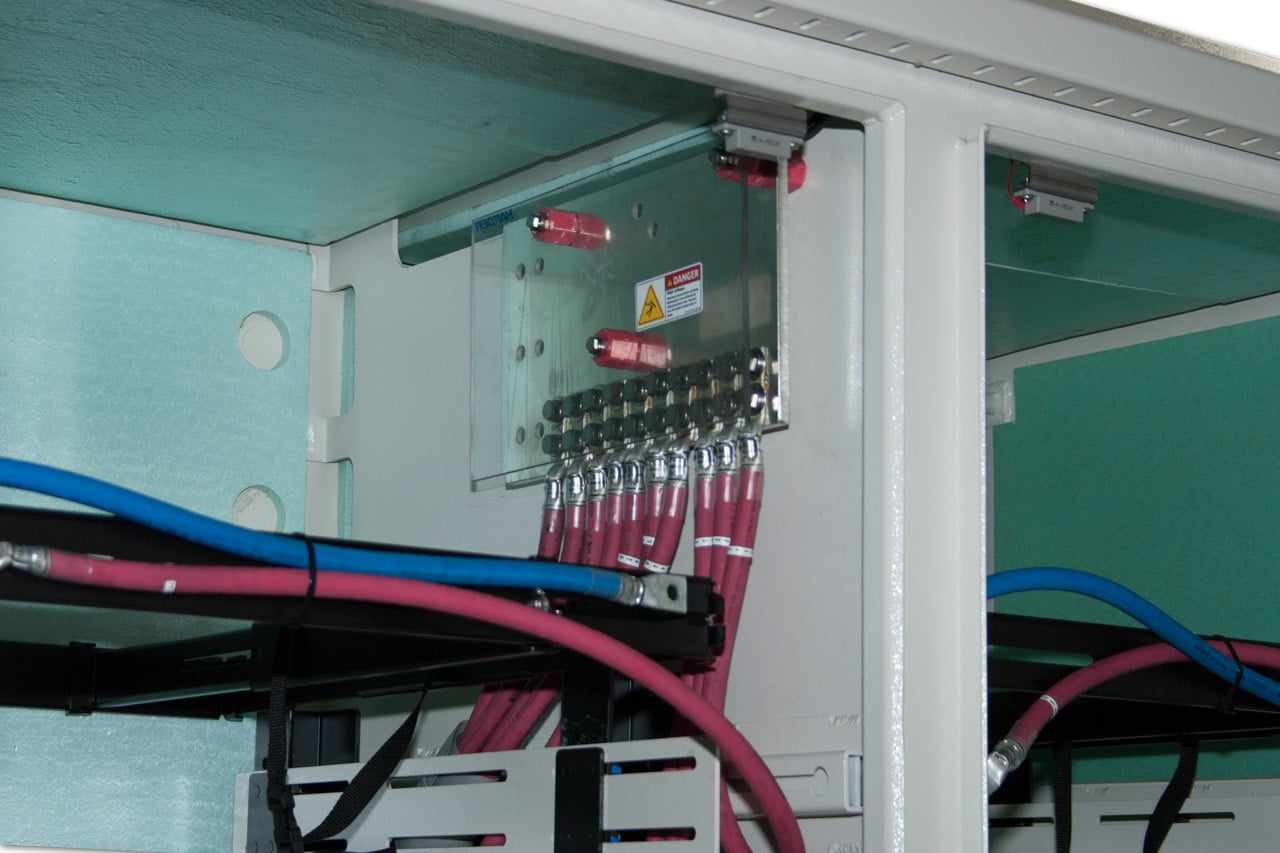

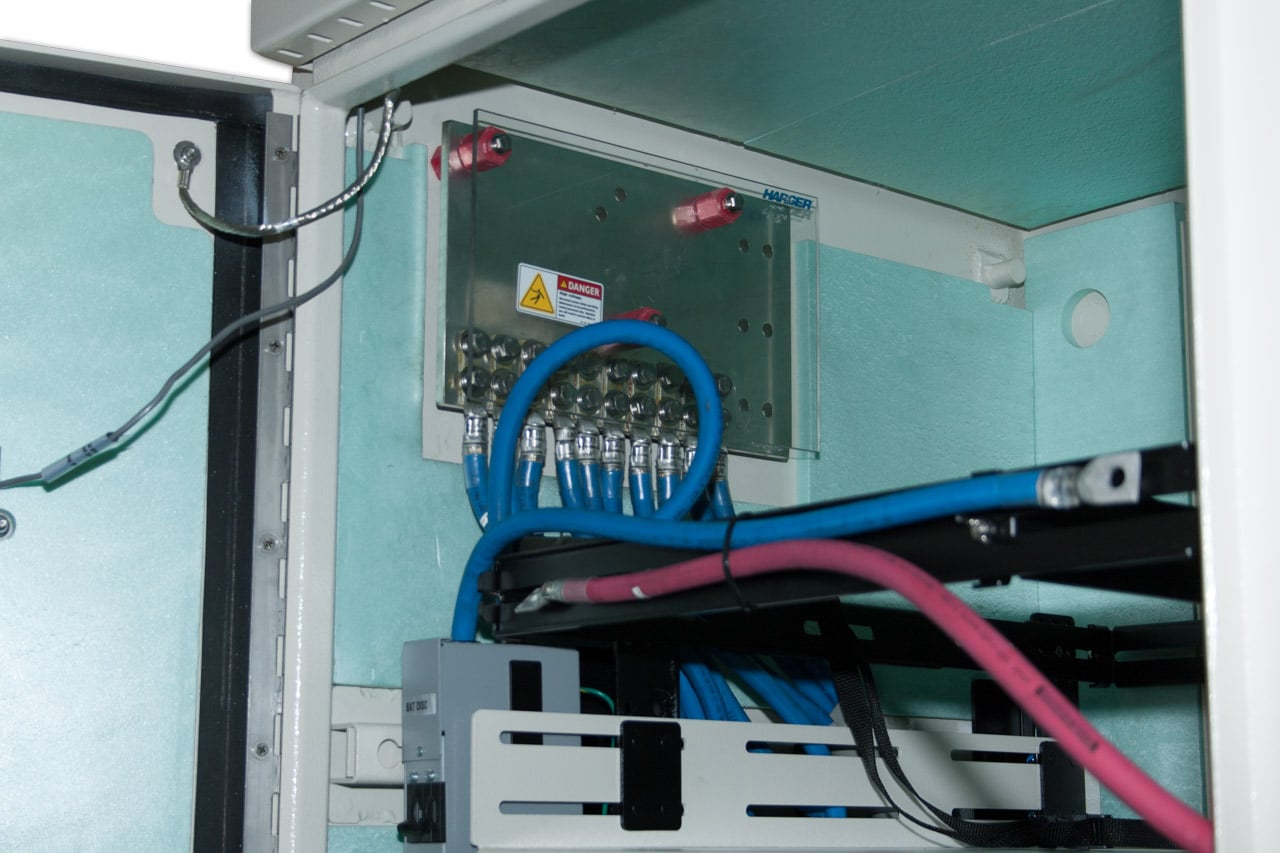

- Battery Terminal Bus Bars: One supply, and one return are prewired in each cabinet.
- Locking: Extremely secure, strong and impermeable. Lockable handles and hinges are made from Type 304 steel.
- Lifting Eyes: Crane ready lifting eyes for convenient way to offload and position your enclosure.
- Warranty: 5 Years on Components Manufactured by American Products.
| STANDARD MODELS | (HxWxD) | BATT. STRING CAP. | BAYS | DOORS | CLIMATE | NEMA | EST. WEIGHT |
|---|---|---|---|---|---|---|---|

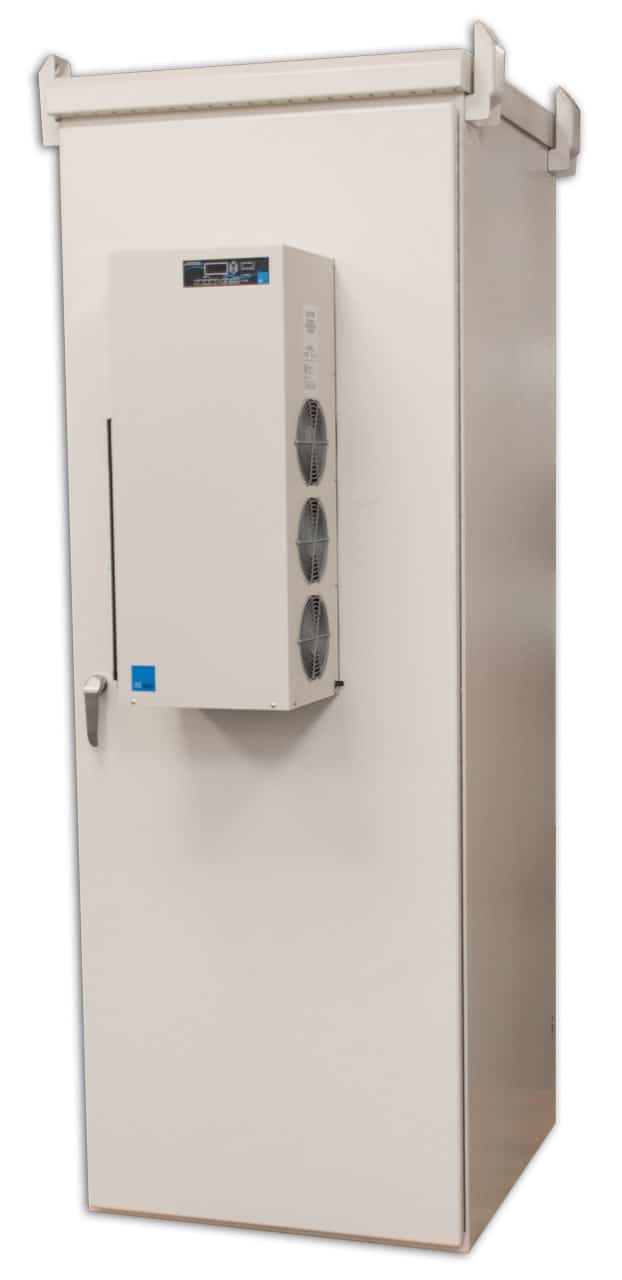

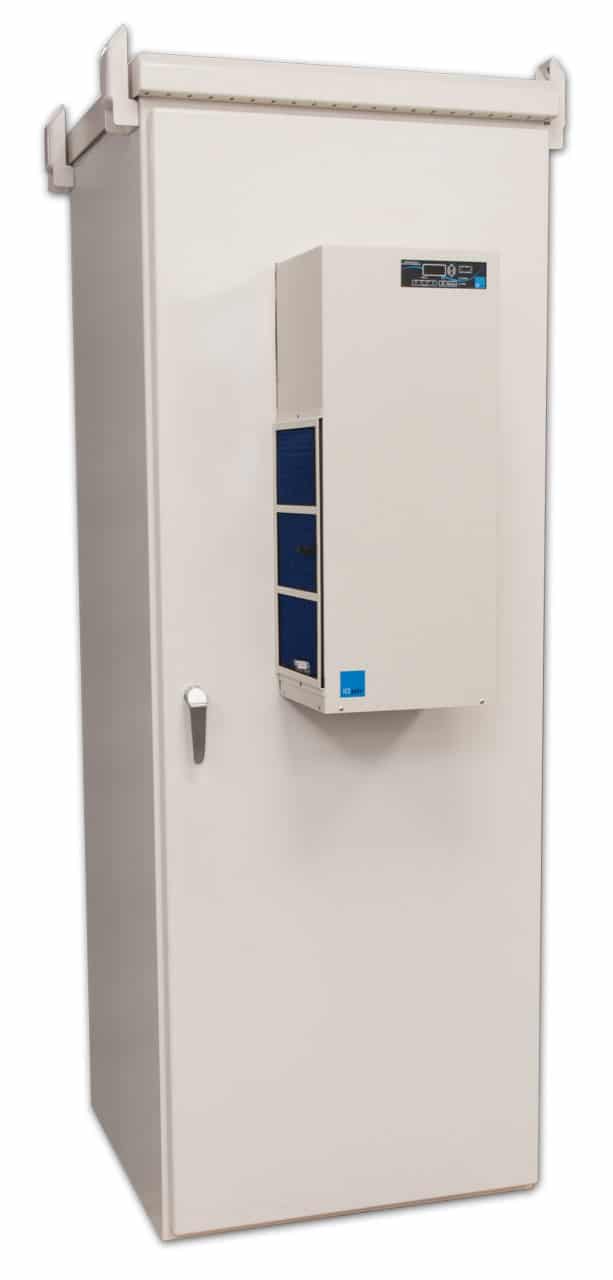

| AM78B-3030-5S-6K | 83” x 30” x 30” | 5 | 1 | 1 | 6K HVAC w/ Heater | 4X | TBD |

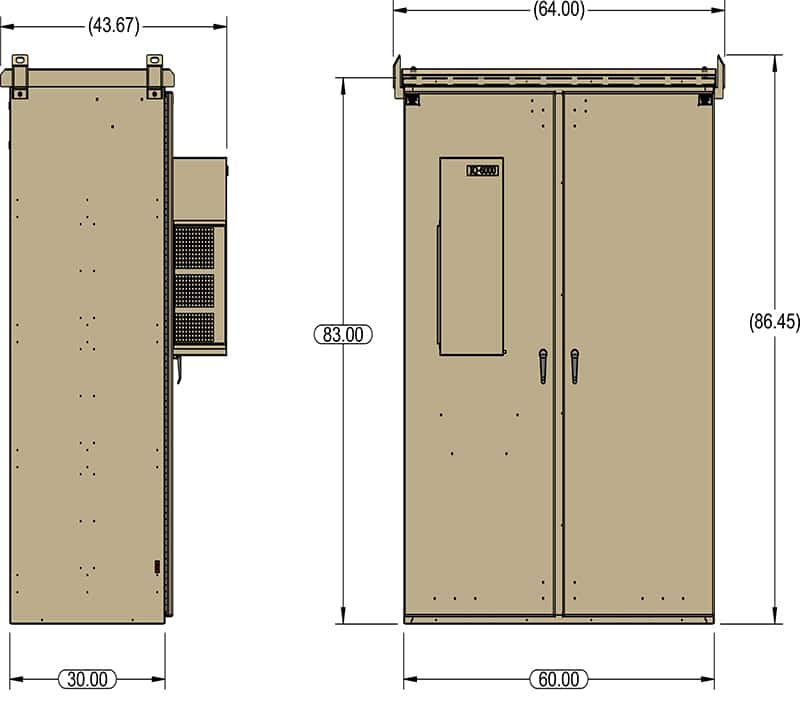

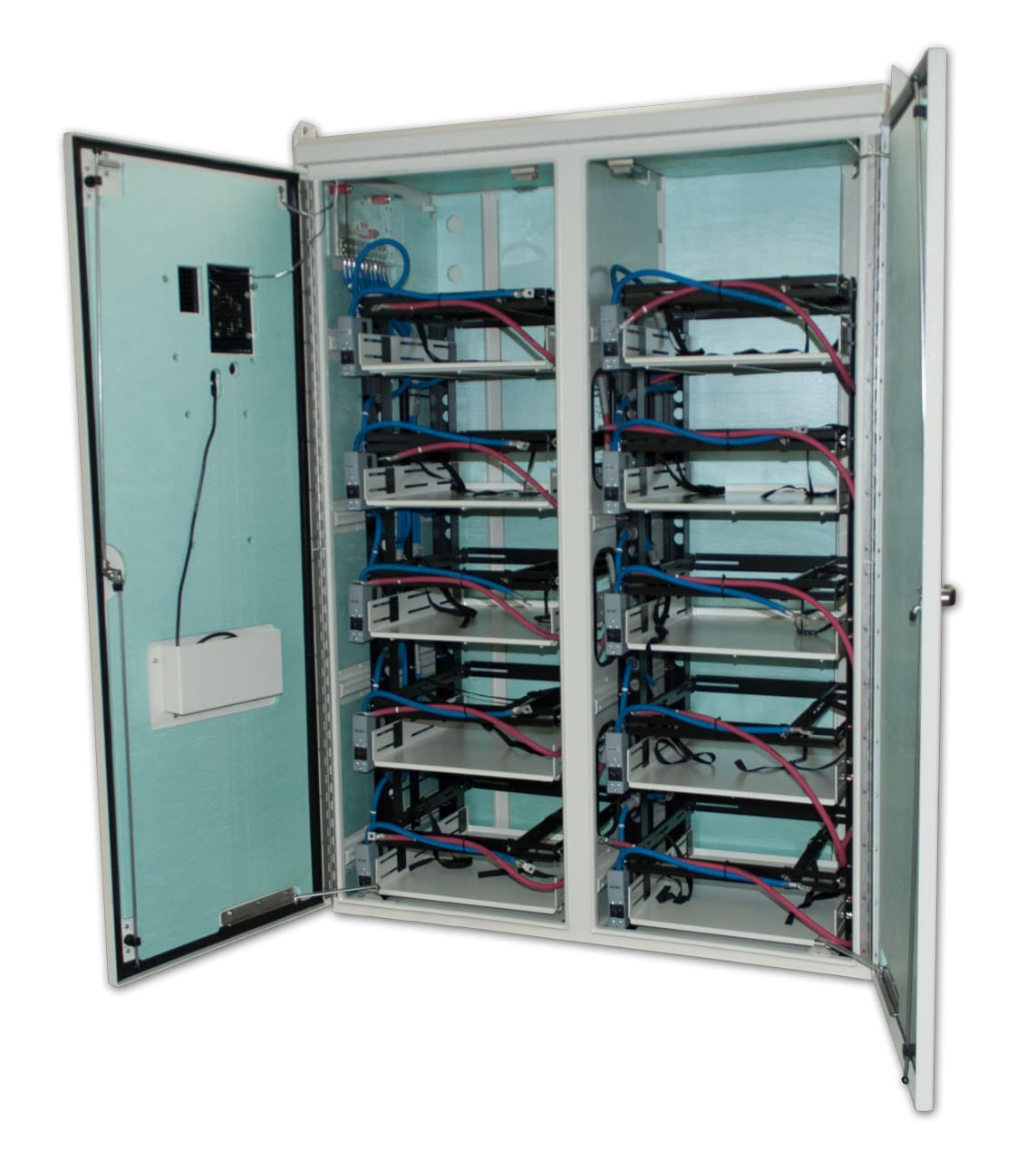

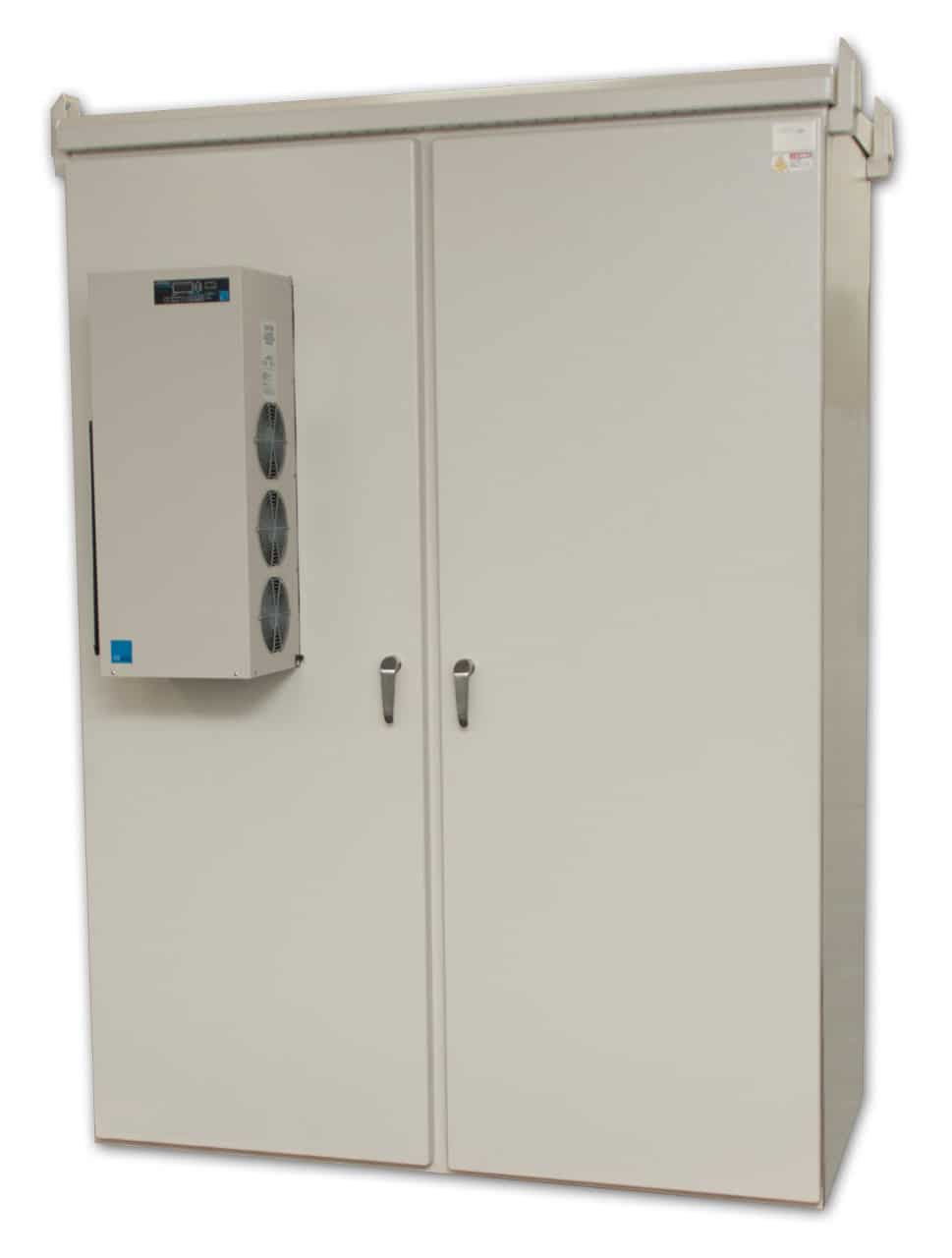

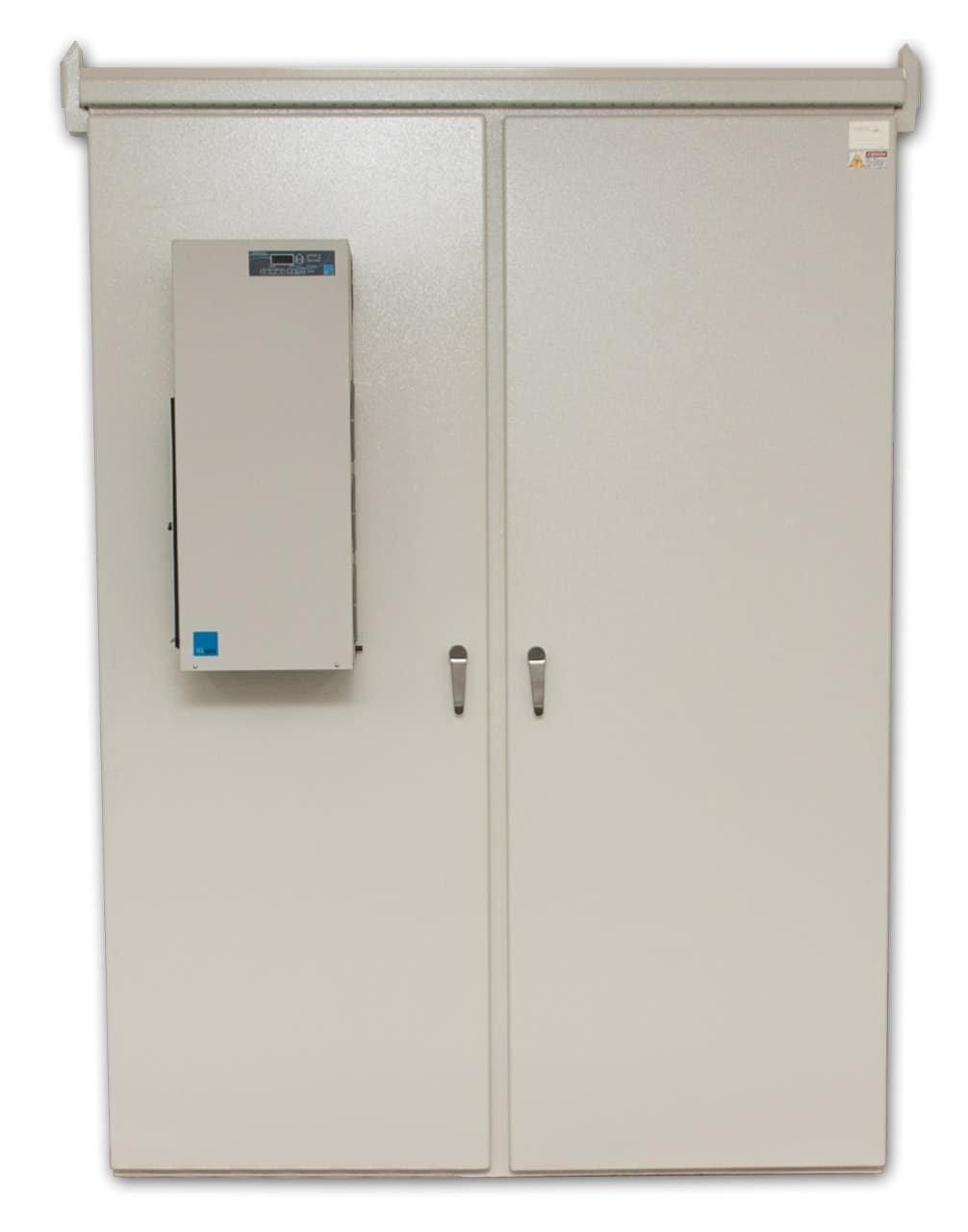

| AM78B-6030-10S-6K | 83” T x 60” W x 30” | 10 | 2 | 2 | 6K HVAC w/ Heater | 4X | TBD |
| AM78B-3030-5S-F | 83” x 30” x 30” | 5 | 1 | 1 | Exhaust Fan & Filter | 3R | TBD |
| AM78B-6030-10S-F | 83” x 60” x 30” | 10 | 2 | 2 | Exhaust Fan & Filter | 3R | TBD |
