Fiber Optic Wall Mount Splice/Termination Enclosures
U.S. Built Enclosures with Precision Integration
Fiber Optic Wall Mount
Series: AM-206 | AM-202 | AM-106 | AM-104
American Products offers a complete line of indoor wall-mount fiber enclosures engineered for splicing, termination, patching, and structured fiber management. These compact, rugged enclosures are ideal for environments where rack space is limited or unavailable, providing a secure, organized fiber interface at the wall level. Constructed from durable aluminum with powder-coated finishes, each enclosure provides ample room for cable routing, adapter plates, splice trays, and fiber storage to support a wide range of network applications.
All models are designed for flexibility, easy installation, and long-term reliability.

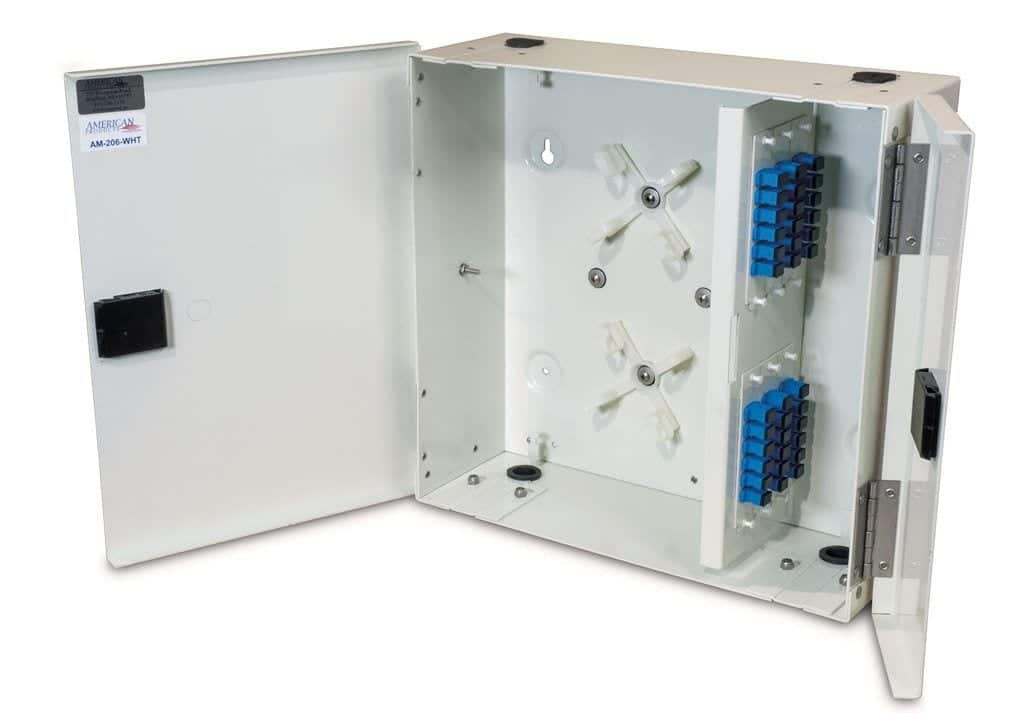

AM -206 White

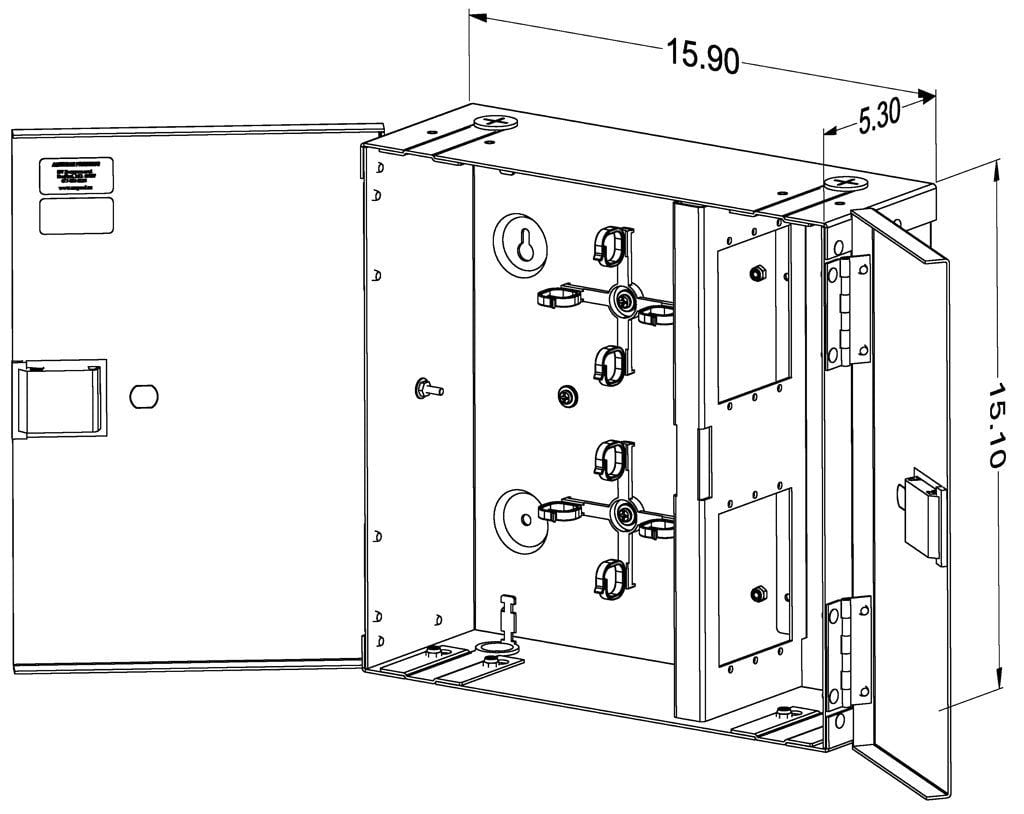

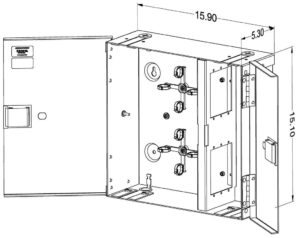

AM-206 Drawing
Key Features
- Compact wall-mount design ideal for telecom rooms, building entrances, utility spaces, industrial areas, and indoor fiber distribution points
- Durable aluminum construction with powder-coat finish for long-lasting performance
- Flexible adapter plate configurations to support LC, SC, ST, FC, and other connector types
- Options for both splice-only and combination splice/termination applications
- Internal routing guides and cable-management features for clean and organized fiber pathways
- Lockable, hinged front doors for secure, easy-access maintenance
- Designed for loose-tube, gel-filled, ribbon, and tight-buffer fiber cables
- Multiple enclosure sizes to match your installation’s fiber density requirements
- Back-mounting holes positioned for quick and simple wall installation
Common Uses
- Telecommunications & Central Office — transition point for OSP cables, building entry connections, and indoor distribution
- Broadband & FTTX deployments — ideal for fiber-to-the-home, MDU, and small-area distribution nodes
- Enterprise & Commercial Buildings — secure demarcation and fiber distribution for LAN and backbone systems
- Industrial & Utility Environments — protected fiber termination where wall-mount solutions are necessary
- Network upgrades & expansions — scalable design allows adapter plates or trays to be added as fiber counts grow
Build-Your-Own or Fully Loaded of Your Choice
Each wall-mount enclosure accepts a range of adapter plates and splice trays depending on your network design. You may order the enclosures unloaded to integrate your own hardware or select loaded plates (LC, SC, ST/FC, duplex, quad, singlemode, multimode, APC, etc.) to create a preconfigured termination solution.
This flexibility allows you to tailor the enclosure to your preferred connector type, density, and application, whether you need a compact termination box for a single fiber run or a multi-adapter panel for higher-density distribution.
Standard Features
- Heavy-duty aluminum construction with powder-coat finish for corrosion resistance and durability
- Lockable hinged door for security and controlled access
- Internal cable routing, tie points, and fiber/cord management features
- Multiple knockout entry points for routing incoming fiber cables
- Compatible with American Products adapter plates and splice trays
- Designed and manufactured to meet industry telecom standards
- Backed by a 5-year warranty for long-term reliability
Choose the Right Enclosure for Your Project

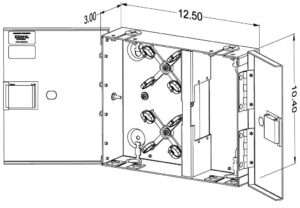

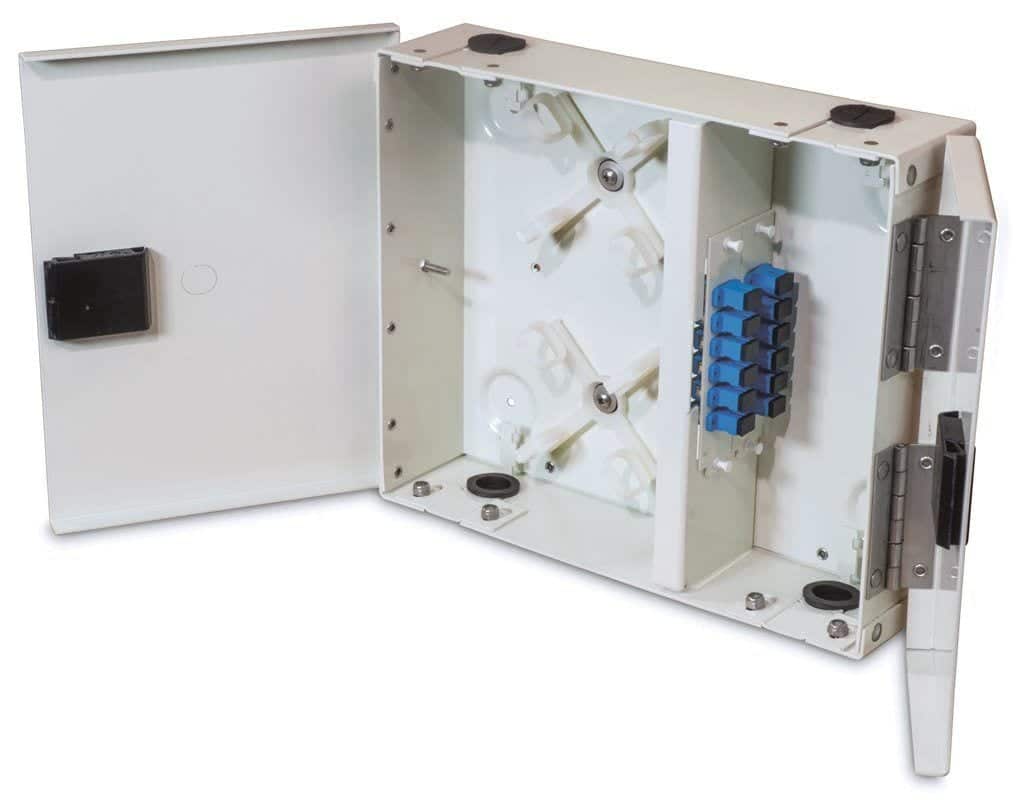

- Need a small, low-density wall-mount termination box? Choose AM-202.
- Installing a medium-capacity wall-mount splice/termination enclosure? The AM-206 offers additional plates and storage space.
- Looking for a higher-density wall-mount solution? The AM-104 or AM-106 deliver expanded adapter capacity to support more terminations within a compact footprint.
No matter the application, from telecom closets to enterprise building entryways, our wall-mount enclosures provide dependable, secure, and organized fiber management.
Our Wall-Mount Enclosure Models
| MODEL & SIZE | HxWxD (in.) | ADAPTER CAPACITY | OPTIONAL SPLICE TRAY | NUMBER OF PLATES |
|---|---|---|---|---|
| AM-202 | 10 x 8 x 3 (approx.) | Up to 12 adapters | 1 | 1 |
| AM-206 | 12 x 10 x 4 (approx.) | Up to 24 adapters | 2 | 2 |
| AM-104 | 12 x 10 x 4 (approx.) | 32 adapters | Yes | 4 |
| AM-106 | 14 x 12 x 4 (approx.) | 48 adapters | Yes | 6 |
Notes:
- Dimensions vary slightly depending on configuration on existing pages.
- Adapter capacity is based on LC or SC duplex/quad plate configurations.
- All models support splice-only, termination-only, or combination applications.
Capacity & Use: Compact single-plate enclosure for small fiber runs.
Supports up to 12 adapter ports, ideal for low-density terminations or splice/termination combinations. Hinged locking cover and internal routing ensure protected, organized fiber transition points.
Capacity & Use: Medium-size wall-mount enclosure supporting up to 24 adapter ports.
Includes mounting for splice trays and multiple entry knockouts. Ideal for small enterprise installations, MDU distribution points, and telecom indoor transitions.
Capacity & Use: High-density wall-mount termination enclosure supporting up to 32 adapters.
Dual-door access design makes installation and maintenance fast and secure. Suitable for higher-capacity building entry or fiber distribution applications.
Capacity & Use: Expanded high-capacity wall-mount enclosure supporting up to 48 adapters.
Ideal for dense fiber termination in telecom rooms, multi-tenant buildings, and enterprise or broadband distribution networks.
