Fiber Optic Single LGX Plate Enclosure
U.S. Built Enclosures with Precision Integration
Fiber Optic Indoor Wall Mount
Series: AM-FWM
The AM-FWM is ideal for areas where space is at a premium and access to the environment is controlled.
It is cost-effective and designed for cross-connect and/or splice management applications and comes with an adapter plate that accommodates up to 12 fibers. You can use a variety of other AM adapter plates as necessary for your application. It offers top and bottom cable entry points.

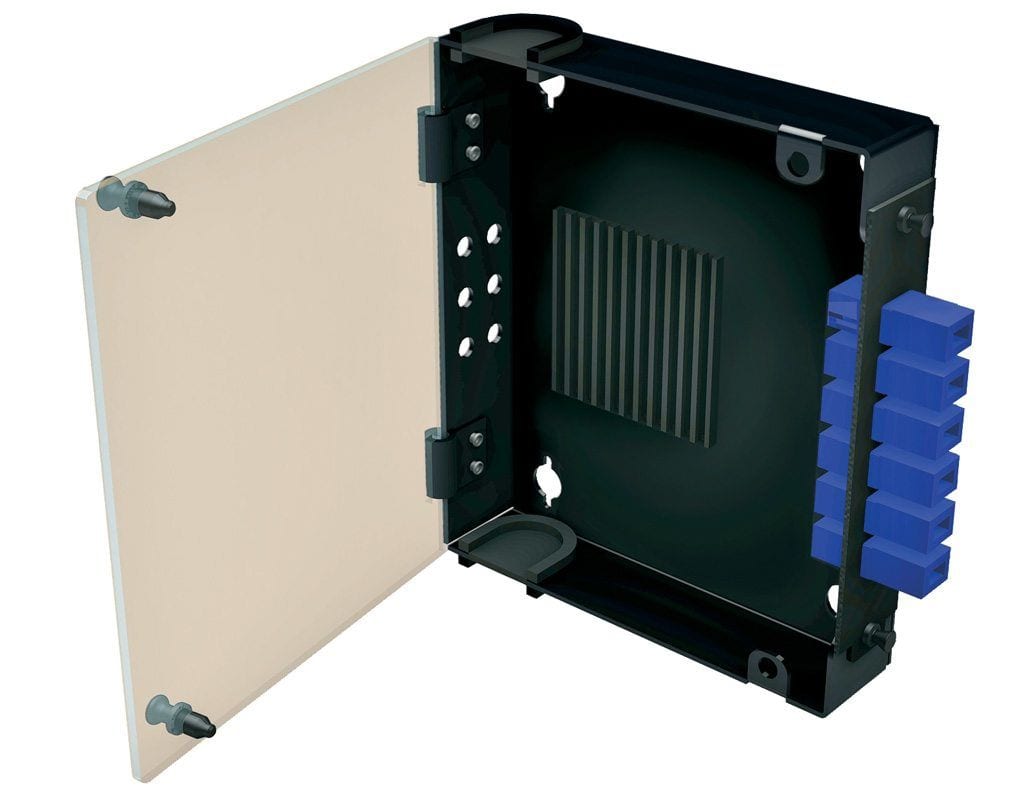

The AM-FWM is built with an all-aluminum body that is powdercoated for extra durability and corrosion resistance. It also has a smoked LEXAN polycarbonate door.
Contact our enclosure specialists now at 417.736.2135 to start your order.
Common Uses
- Cable TV
- Telecommunications
- Fiber optics
Standard Features
- Telcordia tested – Meets Telcordia specifications for telecom enclosures
- .125 aircraft-grade aluminum – Provides excellent corrosion resistance
- 304 stainless steel hardware – Provides extreme rust/corrosion protection in the field
- Powdercoating – Standard Black or White powdercoating provides more protection against corrosion – Durability proven via 720-hour salt spray test
- Hinged LEXAN polycarbonate door – Extremely durable
- Cable entry – Top & bottom access ports
- 5-year warranty – Covers American Products components
Technical Specifications
- Catalog Number: AM-FWM

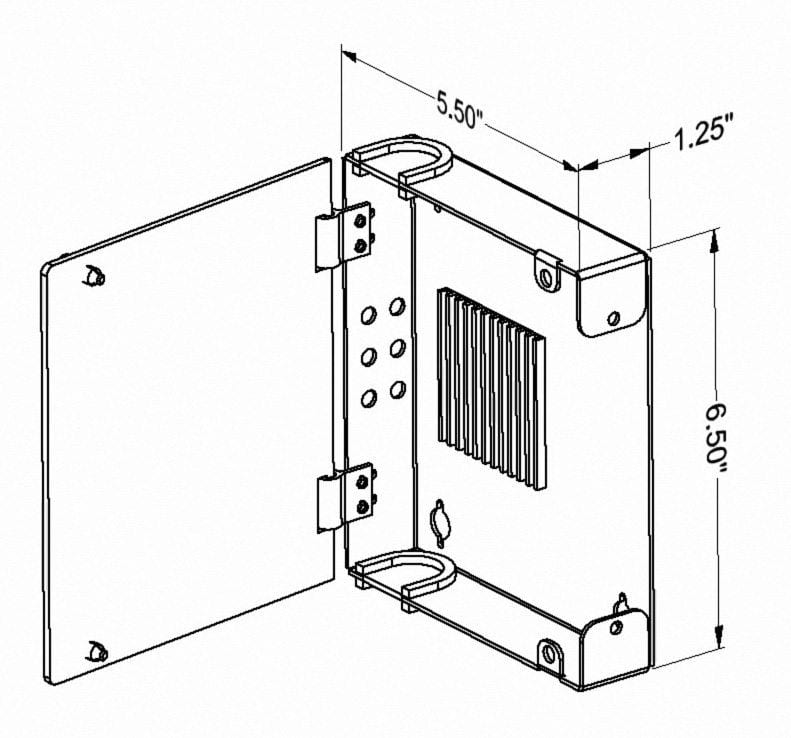

- Dimensions: H 6.5″ x W 5.5″ x D 1.25"
- Adapter Capacity: 8
- Splice Capacity: 12
- Available Colors: Black or White
