Fiber Optic Rack Mount Splice/Termination Enclosures
U.S. Built Enclosures with Precision Integration
Fiber Optic Rack Mount
Series: AM-903 | AM-906 | AM-804 | AM-8012
American Products delivers a versatile line of indoor rack-mount fiber enclosures engineered for termination, splicing, and efficient fiber management, whether you’re deploying a small patch panel or building out a high-density data-center backbone. Our enclosures are built from aircraft-grade aluminum with powder–coated finishes, include reversible rack-mounting tabs, and are designed to accommodate loose-tube, gel-filled, or buffered fiber cables with flexible adapter plate and splice-tray configurations.
All models meet rigorous telecom standards (Telcordia tested), and come with a 5-year warranty.

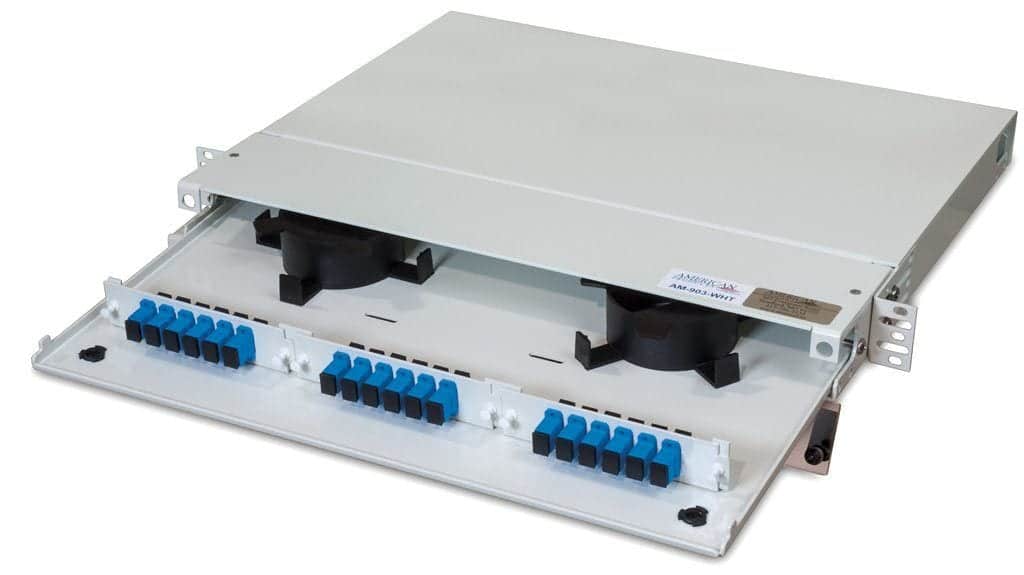

AM-903 White

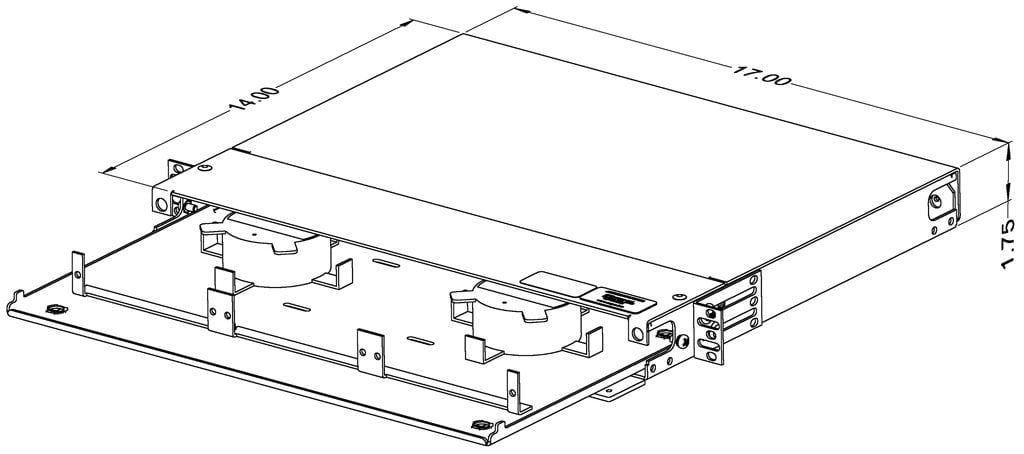

AM-903 Drawing
Key Features
- Flexible installation – reversible mounting tabs fit both 19″ and 23″ racks.
- Durable, corrosion-resistant construction – 0.125 aircraft-grade aluminum body, powdercoat finish, 304 stainless-steel hardware, and LEXAN front door for rugged reliability in demanding telecom environments.
- Modular & scalable configuration – choose from different sizes and capacities depending on your fiber count and design needs; enclosure accepts adapter plates or splice trays as needed.
- Efficient fiber routing & management – all models include internal cable-routing guides, cable-tied bars or clamps, and easy access via removable panels or slide-out trays to simplify installation and maintenance.
Common Uses
- Telecommunications networks – termination and transition of loose-tube or gel-filled outside-plant cables to distribution cable systems.
- Broadband and FTTx deployments – compact and scalable termination points for fiber-to-the-home or multi-dwelling installations.
- Enterprise and data-center backbone cabling – supporting high-density patch panels, splicing, and cross-connect functionality.
- Network upgrades or expansions – modular design allows flexible growth, future reconfiguration, or mixed use (splice + termination) via adapter plates or splice trays.
Build-Your-Own or Fully Loaded of Your Choice
Every enclosure accepts adapter plates or splice trays depending on the project: loaded plates (LC, SC, ST/FC, unloaded plates) can be ordered separately to configure the enclosure for your preferred fiber connector type, density, and mode (single-mode, multimode, APC, duplex, quad, etc.).
Whether you need a compact 1U patch panel, a medium-density splice and termination box, or a high-capacity 4U termination enclosure, American Products has the right solution for you.
Standard Features
- All enclosures are Telcordia tested, built to meet rigorous telecom enclosure specifications.
- Constructed from .125 aircraft-grade aluminum, with powder-coat finish and 304 stainless-steel hardware – providing long-term corrosion resistance even in demanding environments.
- LEXAN polycarbonate doors and removable panels offer durable, easy-access protection for fiber components.
- 5-year warranty on all components – giving you peace of mind in deployment and maintenance.
Choose the Right Enclosure for Your Project
- Need a compact 1U patch panel/splice point? Choose AM-903.
- Looking for a balanced 2U splice + termination enclosure? AM-906 delivers capacity and flexibility.
- Installing a mid-size fiber termination/distribution panel? AM-804 offers a 32-adapter base capacity with room to grow.
- Deploying a large, high-density rack for many fiber runs or backbone terminations? AM-8012 provides maximum adapter capacity and scalability.
No matter the scale, from small office closets to large data centers, our enclosures provide the durability, flexibility, and reliability you need.
Our Rack-Mount Enclosure Models
| MODEL & SIZE | HxWxD (in.) | ADAPTER CAPACITY | OPTIONAL SPLICE TRAY | NUMBER OF PLATES |
|---|---|---|---|---|

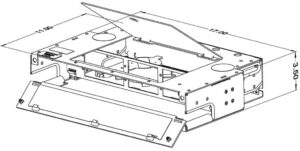

| AM-804 | 3.5 x 17 x11 | 32 | 2 | 4 |

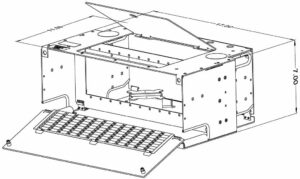

| AM-8012 | 7 x 17 x 11 | 96 | 12 | 12 |

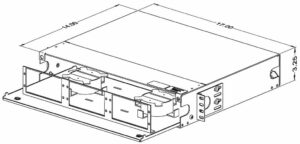

| AM-906 | 3.25 x 17 x 14 | 48 | 4 | 6 |
| AM-903 | 1.75 x 17 x 14 | 24 | 2 | 3 |

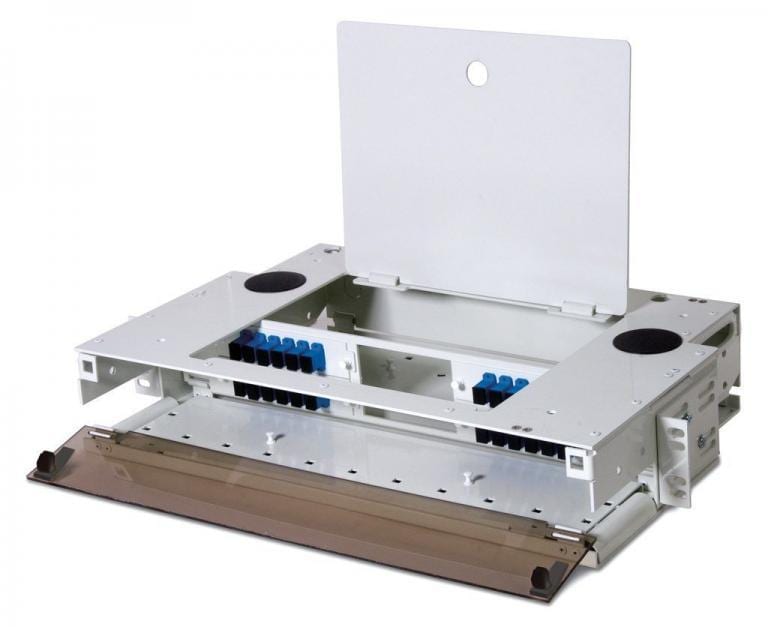

Capacity & Use: 4-plate, 32-adapter capacity (expandable to ~96 fibers depending on plate configuration), 3U, 2RU equivalent.
Ideal for small to mid-size termisnations; removable top panel and Lexan door provide easy access; perfect for termination of outside-plant loose-tube or buffered fibers.
Capacity & Use: 12-plate, 96-adapter capacity (supports up to ~288 fibers depending on configuration), 4U.
High-density termination enclosure for large or growing networks; internal routing guides, port-ID card on door for quick reference, and stackable design for scalable deployments.

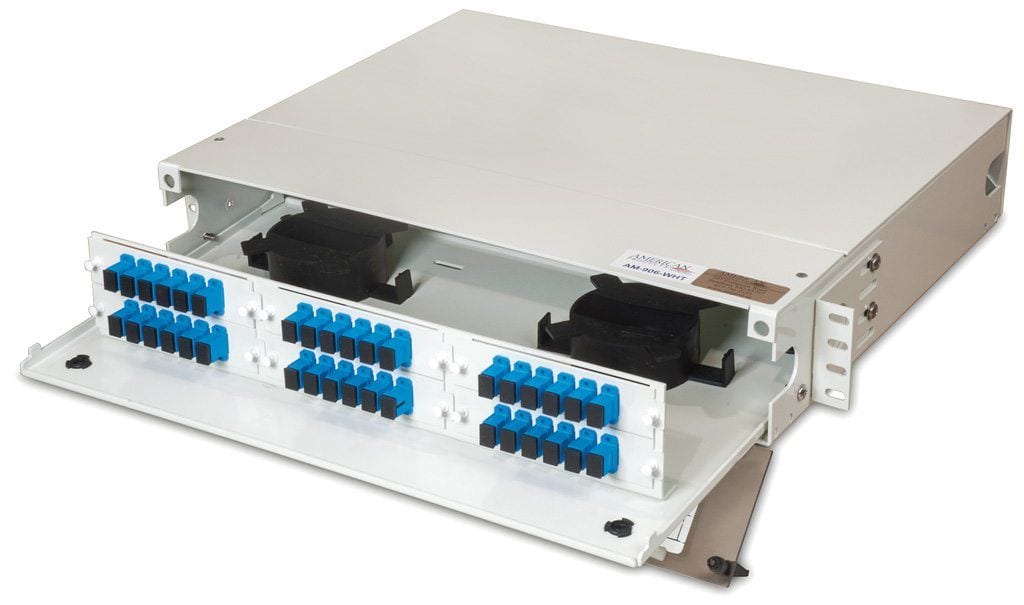

Capacity & Use: 6-plate, 48-adapter capacity, 2RU.
Balanced capacity for medium-size applications; slide-out tray, removable top & rear covers, fiber storage reels for multimode, designed for smooth transition from outside-plant cables to tight-buffer distribution systems.
Capacity & Use: 3-plate, 24-adapter capacity, 1RU.
Compact patch or splice enclosure, perfect when rack space is limited; includes slide-out tray, snap-in adapter plates to support various connector types, and reversible rack mounting for flexible installation.
