Fiber Optic Rack Mount Splice Box
U.S. Built Enclosures with Precision Integration
Fiber Optic Indoor Rack Mount

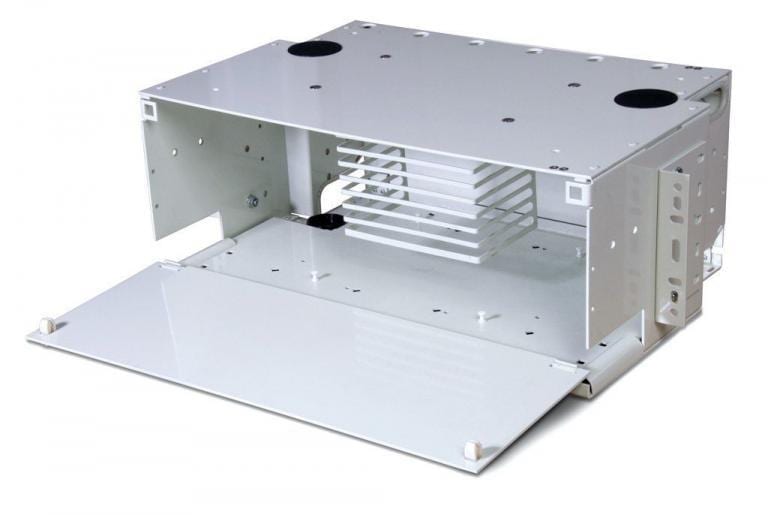

Series: AM-80-SB
The AM-80-SB will house up to six fiber splice trays, allowing you to splice up to 108 fibers. It features internal cable routing guides to make it easy to handle entrance cables.
You can affix the AM-80-SB to the AM-8012 to create a combination of splicing and termination capabilities.
For convenient mounting, the enclosure has reversible tabs that accommodate 19” or 23” equipment racks. It is built with an all-aluminum, powdercoated body and smoked LEXAN polycarbonate door.
Ready to order? Contact our enclosure specialists now at 417.736.2135.
Common Uses
- Satellite communication
- Telecommunications
Standard Features
- Telcordia tested – Meets Telcordia specifications for telecom enclosures
- .125 aircraft-grade aluminum – Provides excellent corrosion resistance
- 304 stainless steel hardware – Provides extreme rust/corrosion protection in the field
- Powdercoating – Gray powdercoating provides more protection against corrosion – Durability proven via 720-hour salt spray test
- Top access panel – Removable to provide easy access to fiber & equipment
- Hinged LEXAN polycarbonate door – Quick-release latches provide convenient access to contents
- Cable clamp brackets – Easy cable tie-down
- 5-year warranty – Covers American Products components
Technical Specifications
- Catalog Number: AM-80-SB

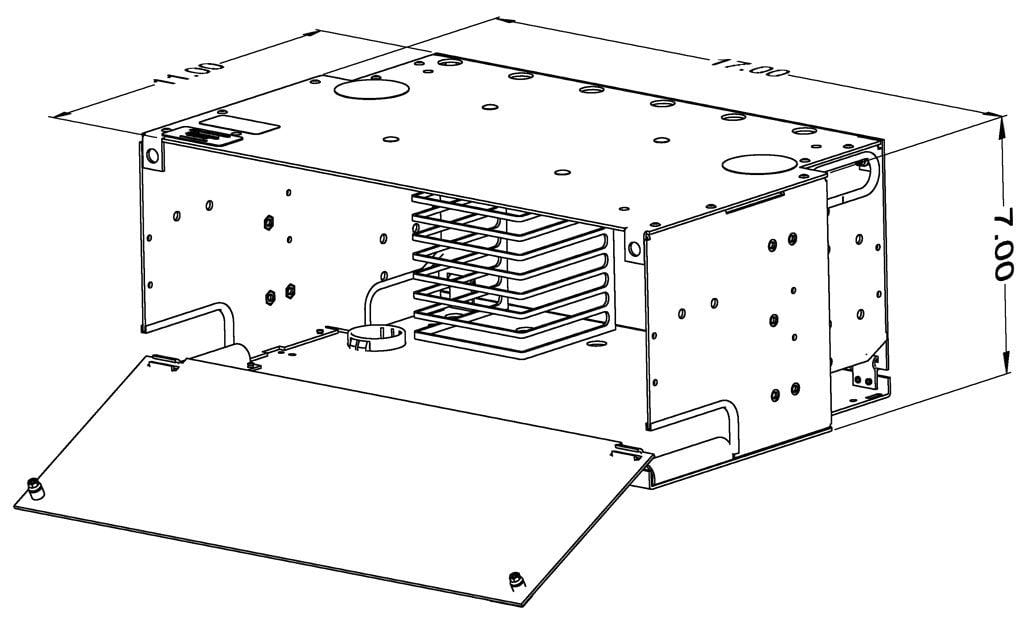

- Dimensions: H 7″ x W 17″ x D 11″
- Adapter Capacity: 0
- Optional Splice Tray: 9
- Available Colors: Black or White
