E-Liberty
U.S. Built Enclosures with Precision Integration

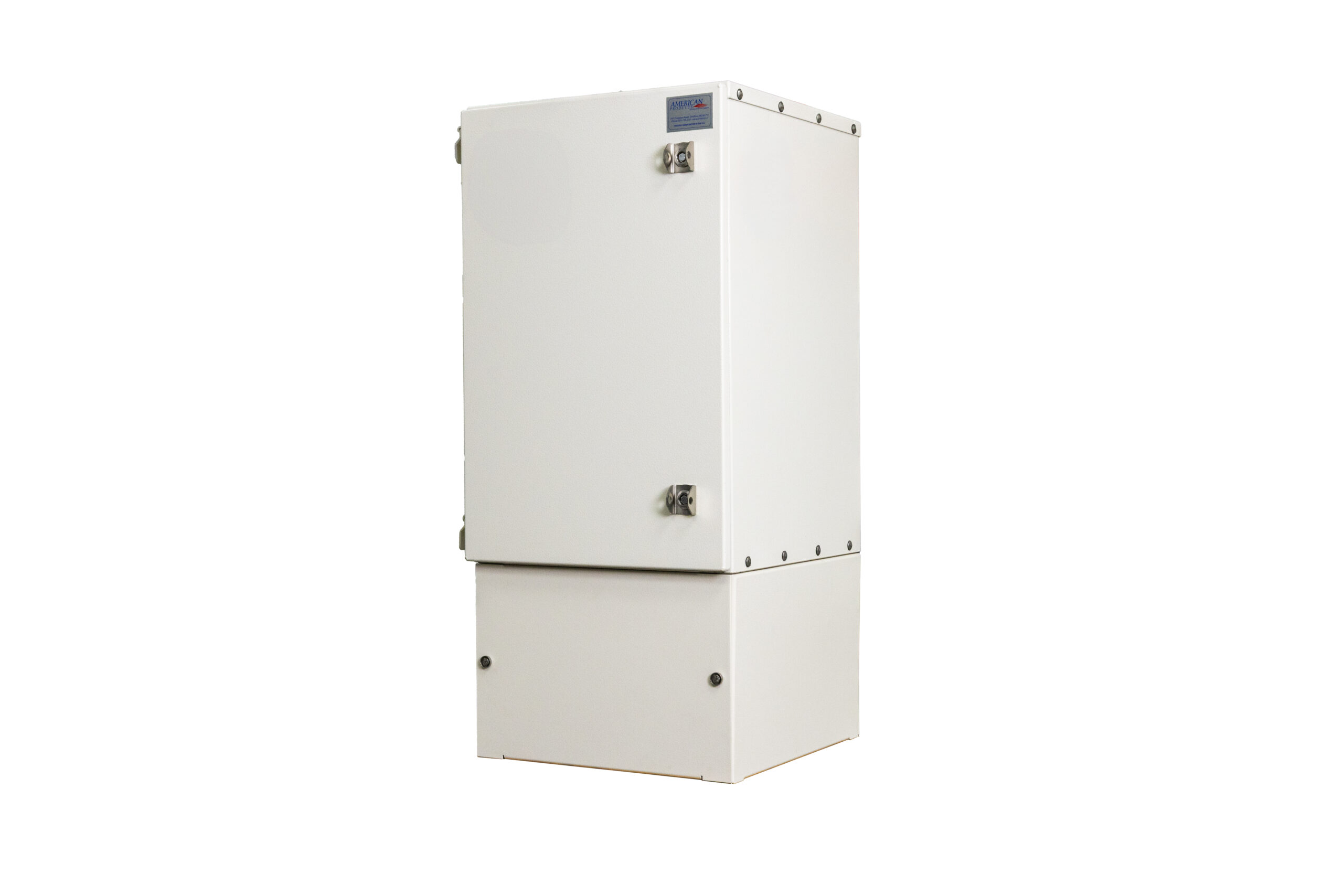

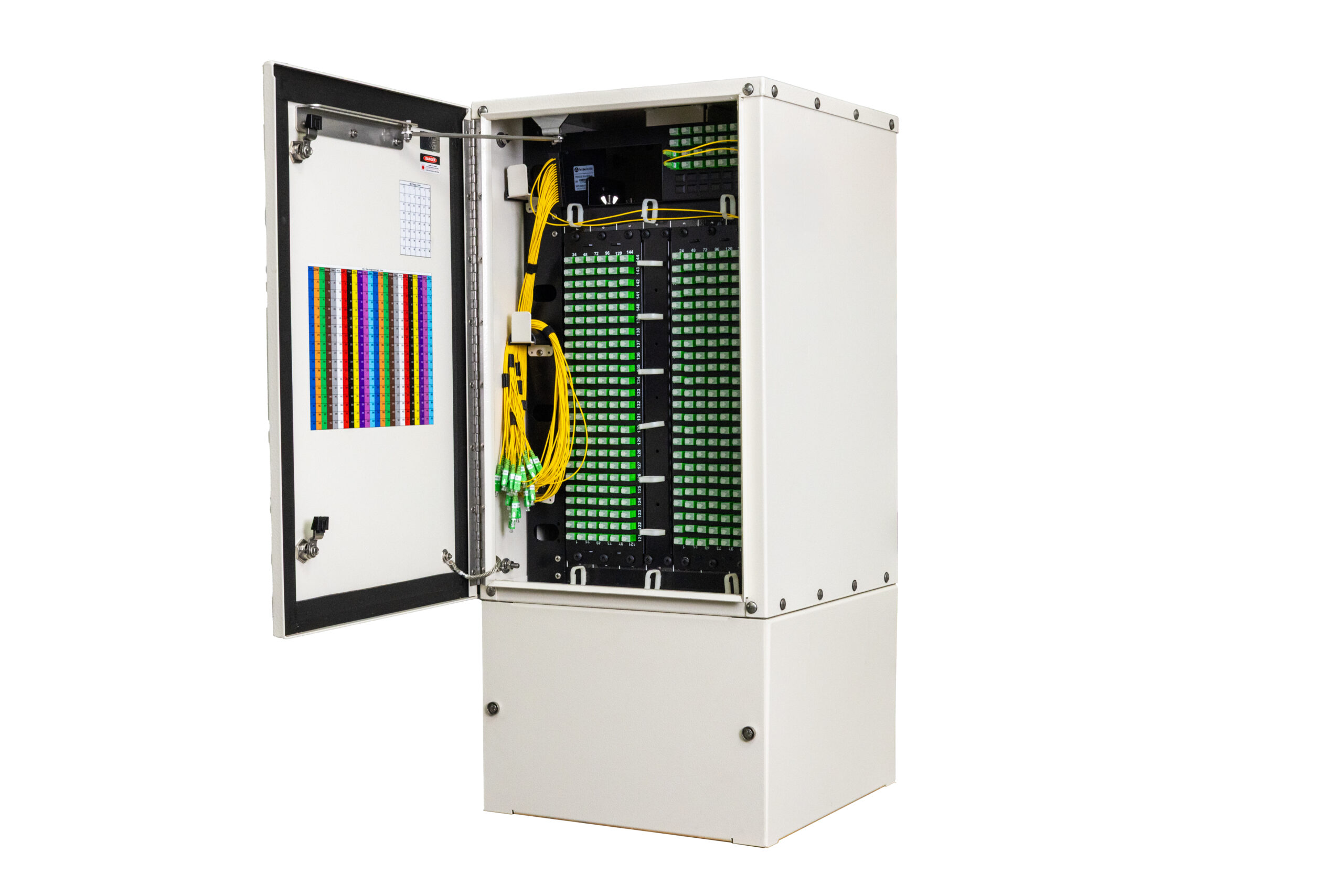

AP E-Liberty™ PON/Cross Connect Fiber Distribution Cabinet
Engineered for Flexibility. Built for Dependability.
The AP E-Liberty™ Series delivers a cost-effective, ready-to-deploy fiber distribution solution designed to protect your network connections from the elements and unauthorized access. Built to perform in the most demanding outdoor environments, E-Liberty cabinets combine rugged construction, universal compatibility, and installer-friendly design for efficient deployment and long-term serviceability.
Whether mounted on a vault lid, pad, or pole, the E-Liberty cabinet provides exceptional scalability and field adaptability, supporting a wide range of splitter types and configurations.
Get in touch with our sales team today to request a quote and discuss your network buildout.
Protect your fiber investment with the AP E-Liberty™ – the smarter, stronger, and more scalable choice for your next network build.
Common Applications
- Fiber optic network expansion
- PON and cross-connect applications
- FTTx and rural broadband buildouts
- Secure outdoor networking environments

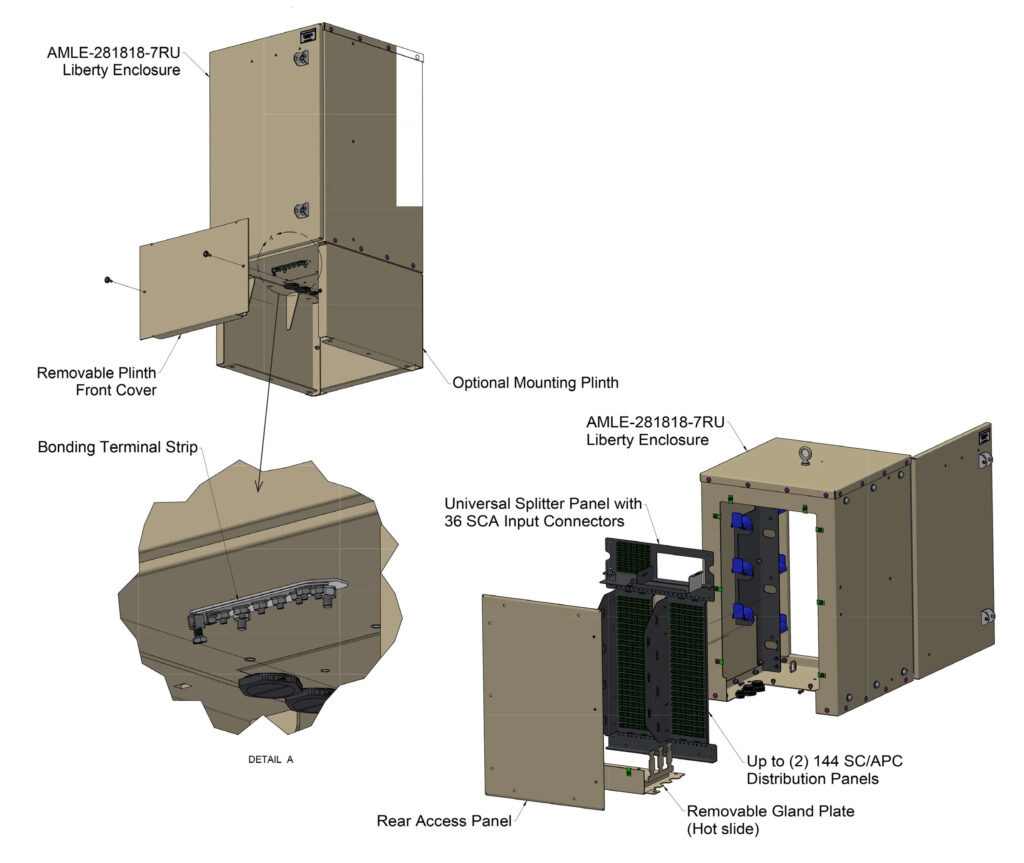

Key Features
- Universal Splitter Panel – “Add splitters as you grow” flexibility supports cartridge, PLC, LGX, and select proprietary splitter brands.
- Hot-Slide Removable Cable Entrance – Enables cabinet reskinning or expansion without service disruption.
- Isolated Locator Service Access – Prevents unauthorized access to the main fiber compartment.
- Fixed Fiber Panels – Keeps fiber connectors locked and stress-free.
- Secure Rear Access Panel – Simplifies troubleshooting and major repair access.
- Flexible Mounting Options – Adaptable for vault lid, pad, or pole mounting.
| Configuration | 144 | 288 | 432 | 576 |
|---|---|---|---|---|
| Model Number | AMLE-2818-144 | AMLE-2818-288 | AMLE-2832-432 | AMLE-2832-576 |
| Dimensions (HxWxD) | 28" x 18" x 18" | 28" x 18" x 18" | 28" x 32" x 18" | 28" x 32" x 18" |
| Weight | 96 lbs | 120 lbs | 190 lbs | 210 lbs |
| Fiber Count (SC/APC) | 144 | 288 | 432 | 576 |
| Feeder Fiber Count | 12 SC/APC | 12 SC/APC | 24 SC/APC | 24 SC/APC |
| Stub Type & Length | Loose Tube – 100’ | Loose Tube – 100’ | Loose Tube – 100’ | Loose Tube – 100’ |
| Cable Entrance Glands | 2 | 3 | 5 | 5 |
| Splitter Support | Cartridge, PLC, LGX & select brands | |||
| Mounting Options | Vault Lid, Pad, or Pole Mount |
- Splitter (1×32 SC/APC), Parking Lot (64-Position)
- 6” or 12” Riser Base with Locator Access
- Pole Mount Bracket.
