C-Liberty
U.S. Built Enclosures with Precision Integration
NEMA Type 3R & 4X
More Fiber. Less Space. Zero Compromise.
The C-Liberty™ Compact PON Fiber Distribution Enclosure delivers high-density fiber distribution in a space-efficient, ROI-friendly design. Engineered for versatility, it performs reliably in virtually any deployment scenario: pole, pad, or wall mounted. It also supports a wide range of connectivity configurations, including pre-configured stub cable, patch, and splice. This fiber enclosure’s efficient design allows you to maximize fiber distribution while maintaining a compact footprint, streamlining operations and maximizing ROI.
Engineered for Smarter, Faster Fiber Networks
The C-Liberty™ Series enclosure is a compact, pre-configured solution purpose-built for rural broadband buildouts, FTTx deployments, and utility-driven fiber networks. Developed with both installers and network operators in mind, it enables rapid field deployment while maximizing ROI through exceptional flexibility and long-term durability. Whether mounted on a pole, pad, wall, or H-frame, the C-Liberty™ Series will adapt seamlessly to wherever your network expansion takes you.
Field-Ready & Built to Last
With field-tested mounting configurations and a thoughtful layout designed to minimize installation steps, the C-Liberty™ Series is optimized for speed, simplicity, and long-term serviceability. Its user-friendly design ensures faster deployments with fewer on-site adjustments, allowing for efficient installation and reliable performance in the field. Even in challenging environments, this fiber enclosure is in it for the long haul.
Request a Complimentary Quote Today
Ready to upgrade your network infrastructure with a high-performance fiber enclosure? Contact our team today to learn about pricing, request drawings, or explore customization options. Our experts are here to help you find the perfect solution for your growing network.
Common Uses
- Networking
- FTTx and FTTH networks
- Rural broadband expansion
- Electrical/utility co-ops
- ISPs, WISPs, cable TV, and satellite providers
Standard Features
- Capacity – 144 SC/APC connection.
- Stub Cable – Includes a 100-foot stub cable, factory-installed and fully tested for reliable performance.
- Mounting – Compatible with pole, pad, wall, or H-frame installations.
- Compatibility – Works with most industry-standard cartridges and splice/patch configurations.
- Enclosure – Features a rugged, outdoor-rated cabinet with a secure closure system for long-term durability.
- NEMA Type 3R protection – Shields internal components from falling dirt, dust, rain, sleet, snow, external ice formation, and splashing water.
- Telcordia Compliance – Designed and manufactured to meet Telcordia specifications for telecom applications.
- 0.125 aircraft-grade aluminum – Offers excellent corrosion resistance in harsh outdoor conditions.
- 300 Series Stainless Steel Hardware – Provides extreme rust and corrosion protection for long-term reliability in the field.
- Powder Coating – Standard beige, gray, and white powder-coated finishes offer increased corrosion resistance and are verified by a 720-hour salt spray test. Custom colors are also available.
- 5-year warranty – Covers all American Products components for peace of mind and long-term value.
Key Features
- High-Density Fiber Distribution – This fiber enclosure comes pre-configured with 144 SC/APC ports and a 100-foot stub cable, enabling fast, efficient deployment in the field.
- Universal Mounting Options – It supports pole, pad, wall, and H-frame installations, offering maximum flexibility across a variety of deployment scenarios.

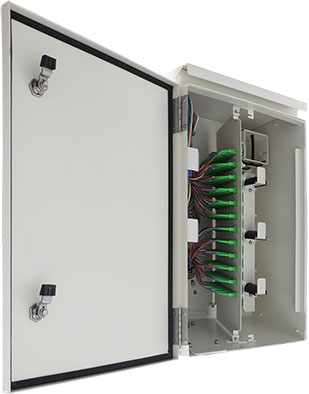

- Removable Break-Out Fiber Management Panel – This handy panel provides unobstructed access, allowing you to easily perform maintenance and installation tasks without disturbing existing terminations.
- Space-Efficient Fanout Design – The enclosure manages a 100-foot, 144-count stub cable while preserving internal space and maintaining accessibility.
- Flexible Connectivity – It supports 1×2 to 1×32 split configurations and is compatible with most splitter cartridges, ensuring seamless integration into existing network architectures.
Why Choose C-Liberty™ Fiber Enclosure?
- Designed to Maximize ROI – Reduce cost per customer through faster deployments and less technician time in the field—without compromising on quality.
- Compact & Durable – This rugged fiber enclosure is built to handle the demands of outdoor environments, yet it boasts a space-saving footprint.
- Optimized for Future-Ready Flexibility – Modular compatibility ensures the C-Liberty TM Series remains adaptable as your network evolves.
- Versatile & Reliable – Trusted by ISPs, electrical co-ops, WISPs, and broadband providers across the country for diverse deployment needs, this enclosure is a true workhorse.
