AP MINIFORT®

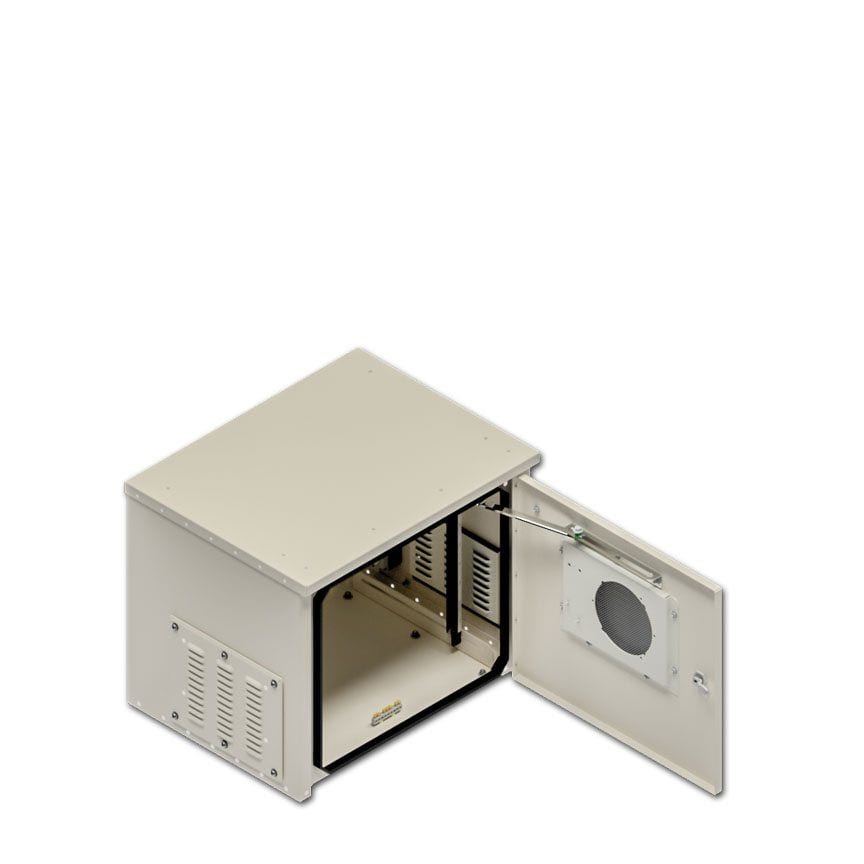

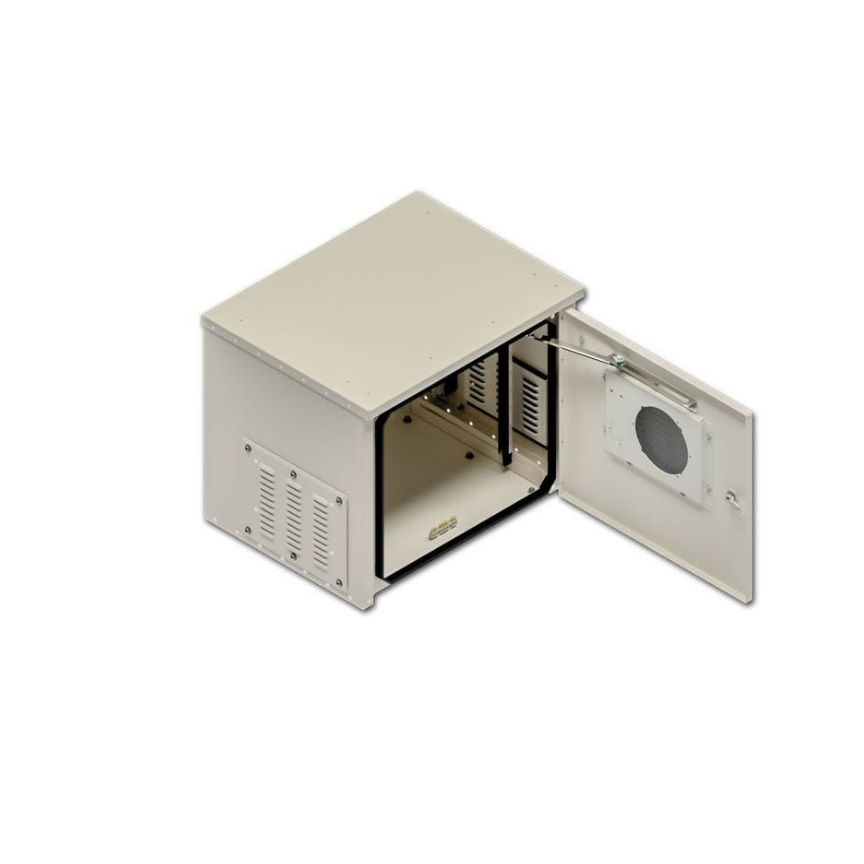

Enclosure 20″ H x 24″ W x 18″ D Setup with Vents and Inlet Filters (AM-202418-9RU-F)
- 9RU Vented Outdoor Enclosure
- Includes One Set 19″ Rack Rails
- Powder Coat Beige
- ETL Tested & Certified to UL 50, UL 50E, and CSA C22.2 No. 94.1-2
- 5 Year Warranty on Components Manufactured by American Products
Description

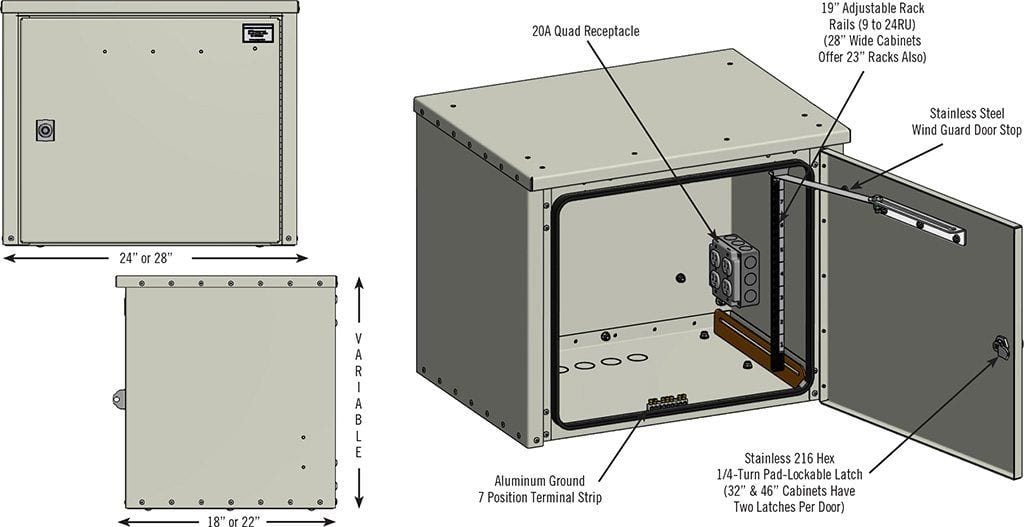

AP MINIFORT™ enclosure 20″ tall x 24″ wide x 18″ 9RU of equipment rack space. Standard powder coating is light texture beige. Enclosure is set up to accept fan option.
Enclosure includes factory installed items below:
- Designed to NEMA 3R standards
- .090 (high strength to weight ratio) aluminum
- Access door has S/S wind guard stops and ground cables
- UL 94 compliant bulb gasket
- Adjustable 19″ rack rails (1 set)
- 20 amp quad convenience receptacle
- 5-position aluminum grounding terminal
- (1) S/S _ turn latch that is pad lockable
- Base has (4) 1.0″ dia knockouts for cable entrance
- Enclosure utilizes all S/S hardware
- Includes door latch tool
